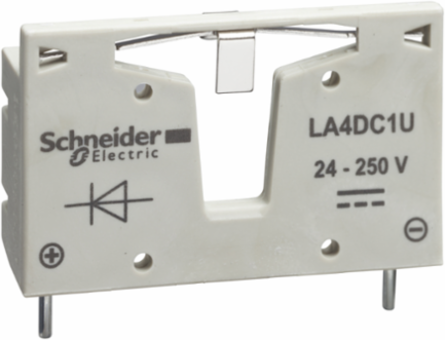

Schneider Electric LA4DC1U TeSys Deca Suppressor Module, 24-250V DC, Flywheel Diode Protection
- MPN: LA4DC1U
- PPN: SCH-LA4DC1U
CAD
$53.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys D suppressor module, for LC1D09-D38 (3P) contactors. To be used with 24V-250V DC control circuit voltage, it provides flywheel diode protection ensuring no transient overvoltage. Mounting on top of contactor, clip-on fixing and connection (polarized component). Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Product Compatibility
- 3P LP1D09...LP1D32
- Device Short Name
- LA4D
Product Or Component Typesuppressor module
RangeTeSys
Complementary
- Maximum Peak Voltage
- 1 Uc
- Mounting Mode
- by screws
[Uc] Control Circuit Voltage24...250 V DC
Suppressor Technologyflywheel diode
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
Ambient Air Temperature For Storage-40-80 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
