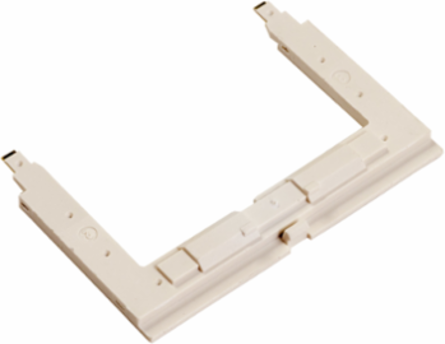

Schneider Electric LAD4TSDL TeSys Deca Suppressor Module, 72V DC, Bidirectional Diode, IP2X
- MPN: LAD4TSDL
- PPN: SCH-LAD4TSDL
CAD
$53.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys D suppressor module, for LC1D09-D38, LC1DT20-DT40 contactors and CAD control relays. To be used with 25-72V DC control circuit voltage, it provides a bidirectional peak limiting diodes protection limiting the transient voltage to 2 Uc max. Clip-on side mounting, overall size of the contactor is unchanged. Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- suppressor module
- Product Compatibility
- 3P LC1D09...D38 || 4P LC1DT20...DT40 || 4P LC1D098...D258 || CAD32, CAD50
RangeTeSys
Device Short NameLAD4
Complementary
- [Uc] Control Circuit Voltage
- 72 V DC
- Mounting Location
- side
- Mounting Mode
- by clips
Net Weight0.012 kg
Maximum Peak Voltage2 Uc
Suppressor Technologybidirectional peak limiting diode
Environment
- Product Certifications
- UL || CSA
- Standards
- IEC 60947-5-1 || EN 60947-5-1 || CSA C22.2 No 60947-5-1 || UL 60947-5-1 || GB/T 14048.5
- Ambient Air Temperature For Storage
- -40-80 °C
Ambient Air Temperature For Operation-25-55 °C
Ip Degree Of ProtectionIP2XIEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111253EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
