Weidmuller 8473000000 MCZ PT100/3 CLP -50C...+150C
- MPN: 8473000000
- PPN: WDM-8473000000
CAD
$242.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

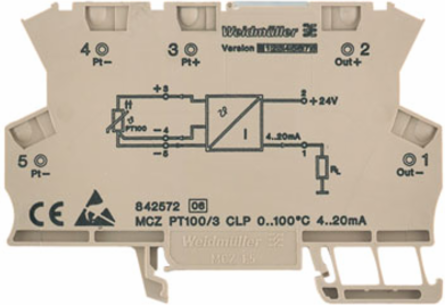

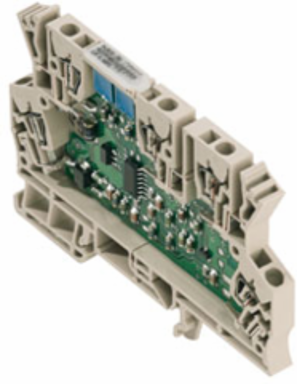

MCZ SERIES, Temperature converter
Documentation & Downloads
Specifications
General Data
- Accuracy
- Typ.: 0.2 %, máx. 0.5 % v. FSR
- Galvanic isolation
- between input/output
- Linearity
- Yes
- Step response time
- 10 ms
- Voltage supply
- Output loop powered, max. 30 V/ min. 9 V + (20 mA x RL)
Configurationnone
Input/OutputPT100/ 4...20 mA (current loop)
RailTS 35
Temperature coefficientmax. ± 250 ppm/K
Probability Of Failure
- MTTF
- 1,068 Years
Approvals
- Approvals
- CE, CSA, cURus, EAC
- UL File Number Search
- E141197
ROHSConform

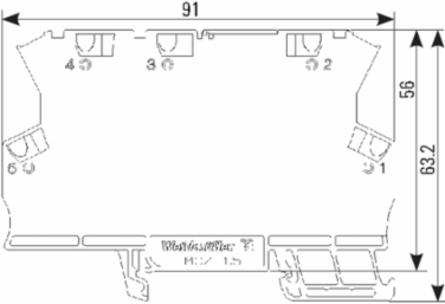

Dimensions And Weights
- Length
- 91 mm
- Width
- 6 mm
- Depth
- 63.2 mm
- Net weight
- 29.2 g
Length (inches)3.583 inch
Width (inches)0.236 inch
Depth (inches)2.488 inch
Connection Data
- Type of connection
- Tension-clamp connection
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 26
- Wire cross-section, solid, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.5 mm²
Clamping range, rated connection1.5 mm²
Clamping range, max.1.5 mm²
Wire connection cross section AWG, max.AWG 16
Wire cross-section, solid, max.1.5 mm²
Wire connection cross section, finely stranded, max.1.5 mm²
Wire cross-section, finely stranded, max. (AWG)AWG 16
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.1.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.1.5 mm²
Rated Data Ul
- Certificate No. (cURus)
- E141197
Tender Specification Sheets
- Long specification

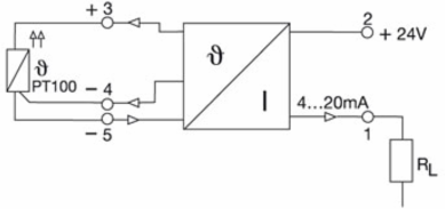

- PT100 temperature measuring transformer, output-loop powered,3-wire connection technologyRTD measuring transformer in 6 mm width 4...20 mA output-loop poweredwithout electrical isolation, for transmitting PT100 2-/3-wire signals.Input temperature range -50...+150 °C. Add-on housing for TS35 rail mountingDimensions: L/W/H 91/ 6/ 63.2 mmTension-clamp connection / Nominal cross-section 1.5 mm2Protection degree: IP 20 Input PT100, 2-/3-wireOutput 4...20 mALoad resistance Transmission error Auxiliary power via 4...20 mA current loopAmbient temperature range 0°C...+50 °C< 0,2 % v. E.Isolation no electrical isolationApprovals cURus, CSATypeMCZ PT100/3 CLP -50C...+150C
Short specificationPT100 temperature measuring transformer, output-loop powered,3-wire connection technologyRTD measuring transformer in 6 mm width, 4...20 mA output-loop poweredwithout electrical isolation, for transmitting PT100 2-/3-wire signals.Input temperature range -50...+150 °C.
Input
- Number of inputs
- 1
- Sensor supply
- 0.8 mA / 9…30 V DC
SensorPT100/2-/3-wire (in compliance with IEC 751)
Temperature input range-50...+150 °C
Classifications
- ETIM 6.0
- EC002919
- eClass 9.0
- 27-21-01-29
- eClass 10.0
- 27-21-01-29
ETIM 7.0EC002919
eClass 9.127-21-01-29
UNSPSC30-21-18-01
Output
- Number of outputs
- 1
- load impedance current
- ≤ 600 Ω
Output current4...20 mA (current loop) at 9...30V DC
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- EMC standards
- EN 61000-6
- Pollution severity
- 2
- Surge voltage category
- I
Galvanic isolationbetween input/output
Rated voltage50 V
Temperatures
- Operating temperature, max.
- 50 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -25 °C...50 °C
Operating temperature, min.-25 °C
Storage temperature, min.-25 °C
Storage temperature-25 °C...85 °C
