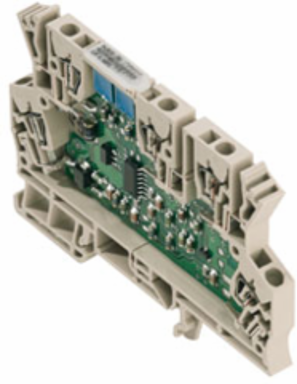

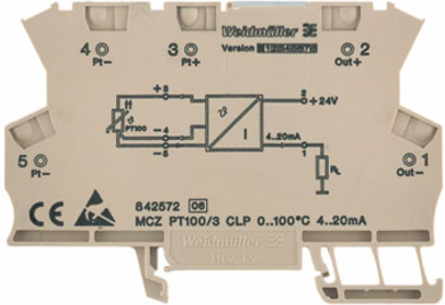

Weidmuller 8425720000 MCZ PT100/3 CLP 0...100C

MPN: 8425720000
PPN: WDM-8425720000

$242.45

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

MCZ SERIES, Temperature converter

Documentation & Downloads

Specifications

General Data

Accuracy	Typ.: 0.2 %, máx. 0.5 % v. FSR
Galvanic isolation	between input/output
Linearity	Yes
Step response time	10 ms
Voltage supply	Output loop powered, max. 30 V/ min. 9 V + (20 mA x RL)

Configuration	none
Input/Output	PT100/ 4...20 mA (current loop)
Rail	TS 35
Temperature coefficient	max. ± 250 ppm/K

Probability Of Failure

MTTF	1,066 Years

Approvals

Approvals	CE, CSA, cURus, EAC
UL File Number Search	E141197

ROHS	Conform

Dimensions And Weights

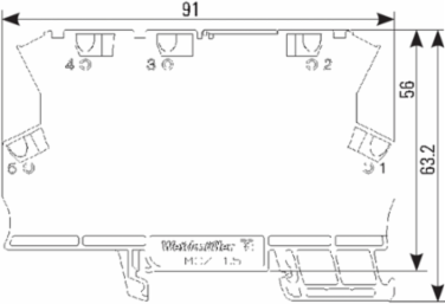

Length	91 mm
Width	6 mm
Depth	63.2 mm
Net weight	29 g

Length (inches)	3.583 inch
Width (inches)	0.236 inch
Depth (inches)	2.488 inch

Connection Data

Type of connection	Tension-clamp connection
Clamping range, min.	0.5 mm²
Wire connection cross section AWG, min.	AWG 26
Wire cross-section, solid, min.	0.5 mm²
Wire connection cross-section, finely stranded, min.	0.5 mm²
Wire cross-section, finely stranded, min. (AWG)	AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.	0.5 mm²

Clamping range, rated connection	1.5 mm²
Clamping range, max.	1.5 mm²
Wire connection cross section AWG, max.	AWG 16
Wire cross-section, solid, max.	1.5 mm²
Wire connection cross section, finely stranded, max.	1.5 mm²
Wire cross-section, finely stranded, max. (AWG)	AWG 16
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	1.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.	1.5 mm²

Rated Data Ul

Certificate No. (cURus)	E141197

Tender Specification Sheets

Long specification

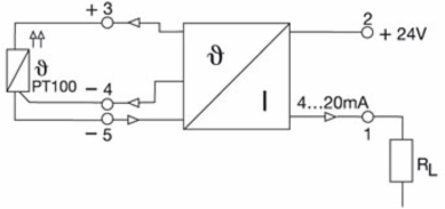

PT100 temperature measuring transformer, output-loop powered,3-wire connection technologyRTD measuring transformer in 6 mm width, 4...20 mA output-loop poweredwithout electrical isolation, for transmitting PT100 2-/3-wire signals.Input temperature range 0...+100 °C.Add-on housing for TS35 rail mountingDimensions: L/W/H 91/ 6/ 63.2 mmTension-clamp connection / Nominal cross-section 1.5 mm2Protection degree: IP 20 Input PT100, 2-/3-wireOutput 4...20 mALoad resistance Transmission error Auxiliary power via 4...20 mA current loopAmbient temperature range 0°C...+50 °C< 0,2 % v. E.Isolation no electrical isolationApprovals cURus, CSATypeMCZ PT100/3 CLP 0...100C

Short specification	PT100 temperature measuring transformer, output-loop powered,3-wire connection technologyRTD measuring transformer in 6 mm width, 4...20 mA output-loop poweredwithout electrical isolation, for transmitting PT100 2-/3-wire signals.Input temperature range 0...+100 °C.
