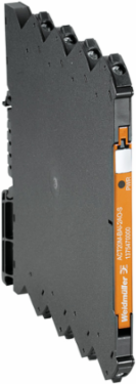

Weidmuller 1435610000 Temperature Converter, 4-20 mA Output, Input PT100 -200...+850 C
- MPN: 1435610000
- PPN: WDM-1435610000
CAD
$303.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

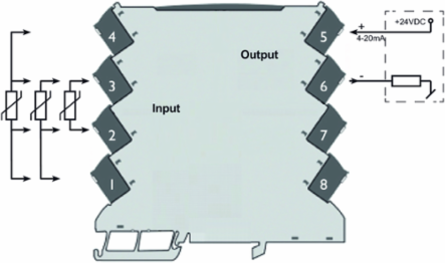

Temperature converter, 2-/3-/4- wire RTD, Input : Temperature, Output : 4-20 mA, (loop powered)
Documentation & Downloads
Specifications
General Data
- Accuracy
- absolute accuracy: < ±0.1 % of the measurement range, Basic accuracy: < ±0.2°C
- Configuration

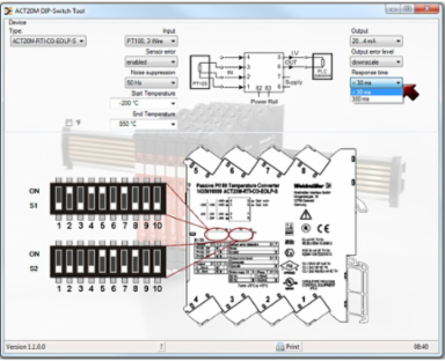

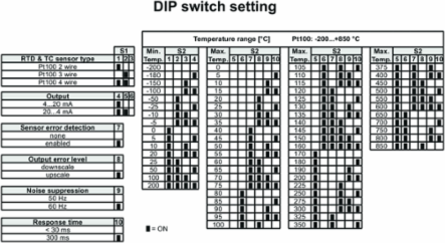

- DIP switch
- Power consumption, max.
- 0.8 W
- Rail
- TS 35
- Temperature coefficient
- RTD (PT100) ≤0.01 % of the measurement range⁄°C or 0.02 °C ⁄ °C
Cold-junction compensation error±(2.0 °C + 0.4 °C x Δt) Δt = inside temperature – ambient temperature
Galvanic isolationWithout isolation
Power consumption, typ.0.48 W
Step response time≤ 30 ms, < 300 ms
Voltage supplyOutput loop powered, 6…35 V
Probability Of Failure
- MTBF
- 227 Years
Approvals
- Approvals
- CULUS, DETNORVER, DNV GL, EAC, FMEX, IECEXKEM, KEMAATEX
- UL File Number Search
- E337701
ROHSConform
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 112.5 mm
- Depth
- 114.3 mm
- Net weight
- 80 g
Width (inches)0.24 inch
Height (inches)4.429 inch
Depth (inches)4.5 inch
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 30
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Rated Data Ul
- UL certificate
- E337701.pdf
Input
- Number of inputs
- 1
- Influence of the sensor cable resistance
- < 0.002 Ω⁄Ω
- Line resistance in measuring circuit
- 50 Ω@ RTD (Pt100), 10 kΩ @ TC (J, K)
SensorPT100 / 2-/3-/4-wire
Input measurement rangePT100 -200…+850 °C
Temperature input rangeConfigurable, min. measurement range 10°C (RTD)
Classifications
- ETIM 6.0
- EC002919
- eClass 9.0
- 27-21-01-29
- eClass 10.0
- 27-21-01-29
ETIM 7.0EC002919
eClass 9.127-21-01-29
Output
- Number of outputs
- 1
- Wire break detection
- 3.5 mA ⁄ 23 mA ⁄ none
Output currentconfigurable, 4...20 mA, 20…4 mA
Product Information
- Product information
- The ACT20M-RTCI-CO-OLP-S passive configurable temperature transducer isolates and converts analogue signals. An analogue RTD (Type Pt100) or TC (Type J, K) input signal is linearly converted into an analogue output signal and galvanically isolated. Power is supplied through the output measurement circuit (output- loop powered).The ACT20M-RTI-CO-EOLP-S passive configurable temperature transducer does not have any galvanic isolation and has no TC input.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Data For Ex Applications (Atex)
- Marking
- II 3 G Ex nA IIC T4 Gc
Insulation Coordination
- EMC standards
- IEC 61326-1, NE 21
- Pollution severity
- 2
Galvanic isolationWithout isolation
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Storage temperature, max.85 °C
Ambient temperature-25 °C...+70 °C
Ratings Iecex/Atex/Cul
- Certificate No. (ATEX)
- KEMA10ATEX0183X
- Certificate no. (cULus)
- E337701
Certificate No. (IECEX)IECEXKEM10.0090X
