Balluff

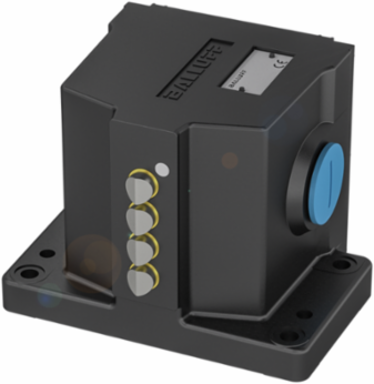

Balluff BNS 819-D04-R12-100-10 Mechanical Limit Switch 4 Positions, 250 VAC, IP67, Aluminum Housing

Mechanical Limit Switch 4 Positions, 250 VAC, IP67, Aluminum Housing
  • MPN: BNS 819-D04-R12-100-10
  • PPN: BAL-BNS00J4

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$906.48/ EA

Specifications

Specifications

Country of Origin
China
Housing material
Aluminum, Anodized
Version
Snap contact
Continuous current
1-4. Switch position: 6 A
Installation
Vertical
Approach speed
1-4. Switch position: 60 m/min
Connection type
1-4. Switch position: Screw terminal
IP rating per IEC 60529
IP67
Dimension120 x 90 x 83 mm
Number of switching positions4x Roller
Operating principle1-4. Switch position: Mechanical
Rated operating voltage Ue1-4. Switch position: 250 VAC
Approach directionlongitudinal, parallel to attachment surface
Switch position spacing12 mm
Ambient temperature-5...85 °C
Approval/ConformityCE; UKCA; CCC; WEEE
