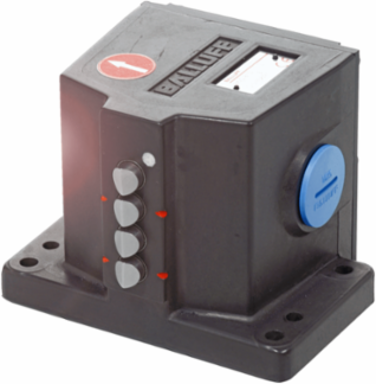

Balluff BNS 813-D05-L12-100-22-05 Mechanical multiple position limit switches with safety switch positions BNS 813-D05-L12-100-22-05

Mechanical multiple position limit switches with safety switch positions BNS 813-D05-L12-100-22-05

Balluff BNS 813-D05-L12-100-22-05 Mechanical multiple position limit switches with safety switch positions BNS 813-D05-L12-100-22-05

MPN: BNS 813-D05-L12-100-22-05
PPN: BAL-BNS0129

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1777.74/ EA

Loading add to cart quantity...

Description

For safety functions such as Emergency Stop or end-of-travel limitation with safety switches in accordance with DIN EN 60204-1/VDE 0113The switching process is triggered by a rigid ram that actuates a mechanical switching element with positive opening. The switching is protected even with welded contacts.The number of safety switching points can be combined freely and with standard switching elements.

Specifications

Specifications

Dimension: 120 x 105 x 83 mm

Number of switching positions: 5x Roller bearing

Operating principle: 1-5. Switch position: Mechanical

Rated operating voltage Ue: 1-5. Switch position: 250 VAC

Approach direction: longitudinal, parallel to attachment surface

Switch position spacing: 12 mm

Ambient temperature: -5-85 °C

Approval/Conformity: CE, WEEE

Housing materialAluminum

VersionSafety EN 60204-1

Continuous current1-5. Switch position: 6 A

InstallationVertical

Approach speed1-5. Switch position: 80 m/min

Connection type1-5. Switch position: Screw terminal

IP ratingIP67
