Balluff

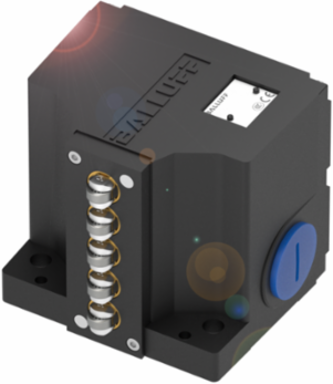

Balluff BNS 819-B02-D12-61-12-10 Mechanical Multiple Position Limit Switch, 2x Chisel, IP67, 79x36x63 mm

Mechanical Multiple Position Limit Switch, 2x Chisel, IP67, 79x36x63 mm
  • MPN: BNS 819-B02-D12-61-12-10
  • PPN: BAL-BNS026R

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$495.02/ EA

Specifications

Specifications

Country of Origin
China
Housing material
Aluminum, Anodized
Version
Snap contact
Continuous current
1-2. Switch position: 6 A
Installation
Vertical
Approach speed
1-2. Switch position: 40 m/min
Connection type
1-2. Switch position: Screw terminal
IP rating per IEC 60529
IP67
Dimension79 x 36 x 63 mm
Number of switching positions2x Chisel
Operating principle1-2. Switch position: Mechanical
Rated operating voltage Ue1-2. Switch position: 250 VAC
Approach directionlongitudinal, parallel to attachment surface
Switch position spacing12 mm
Ambient temperature-5...85 °C
Approval/ConformityCE; UKCA; CCC; WEEE
