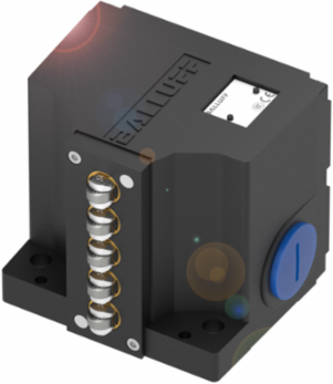

Balluff BNS 819-B02-D16-61-16-10 Mechanical Limit Switch with 2x Chisel Positions, IP67, 79 x 48 x 63 mm
- MPN: BNS 819-B02-D16-61-16-10
- PPN: BAL-BNS0277
CAD
$509.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mechanical Limit Switch with 2x Chisel Positions, IP67, 79 x 48 x 63 mm
Documentation & Downloads
Specifications
Additional
| Rated operating voltage | 250 VAC |
|---|---|
| Number of switching positions | 2x Chisel |
| Approach speed | 40 m/min |
| Dimensions | 79 x 48 x 63 mm |
| Connection type | Screw terminal |
| IP rating | IP67 |
| Installation | Vertical |
| Version | Snap contact |
| Continuous current | 6 A |
|---|---|
| Switch position spacing | 16 mm |
| Ambient temperature | -5 to 85 C |
| Housing material | Aluminum, Anodized |
| Operating principle | Mechanical |
| Approval/Conformity | CE, UKCA, CCC, WEEE |
| Approach direction | Longitudinal, parallel to attachment surface |
| Country of Origin | China |
