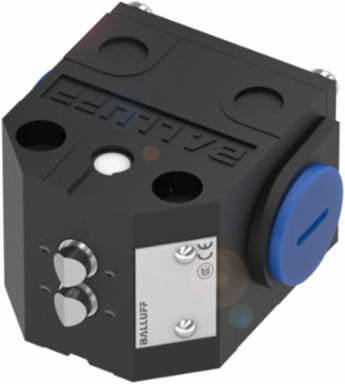

Balluff BNS 813-B03-R08-40-69-03 Mechanical multiple position limit switches with safety switch positions BNS 813-B03-R08-40-69-03
- MPN: BNS 813-B03-R08-40-69-03
- PPN: BAL-BNS0579
CAD
$829.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
For safety functions such as Emergency Stop or end-of-travel limitation with safety switches in accordance with DIN EN 60204-1/VDE 0113The switching process is triggered by a rigid ram that actuates a mechanical switching element with positive opening. The switching is protected even with welded contacts.The number of safety switching points can be combined freely and with standard switching elements.
Documentation & Downloads
Specifications
Key Specifications
- Housing material
- Aluminum
- Version
- with forced opening
- Continuous current
- 1-3. Switch position: 5 A
- Installation
- Vertical
- Approach speed
- 1-3. Switch position: 60 m/min
- Ambient temperature
- -5-85 °C
- Approval/Conformity
- CE, WEEE
Number of switching positions3x Roller
Operating principle1-3. Switch position: Mechanical
Rated operating voltage Ue1-3. Switch position: 250 VAC
Approach directionlongitudinal, parallel to attachment surface
Connection type1-3. Switch position: Solder connection
IP ratingIP67
