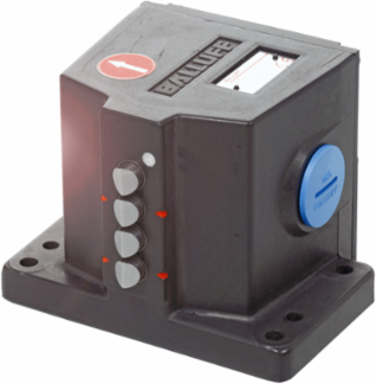

Balluff BNS 813-D04-D12-100-22-04 Mechanical multiple position limit switches with safety switch positions BNS 813-D04-D12-100-22-04
Balluff BNS 813-D04-D12-100-22-04 Mechanical multiple position limit switches with safety switch positions BNS 813-D04-D12-100-22-04
- MPN: BNS 813-D04-D12-100-22-04
- PPN: BAL-BNS00Y7
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1244.64/ EA
Description
For safety functions such as Emergency Stop or end-of-travel limitation with safety switches in accordance with DIN EN 60204-1/VDE 0113The switching process is triggered by a rigid ram that actuates a mechanical switching element with positive opening. The switching is protected even with welded contacts.The number of safety switching points can be combined freely and with standard switching elements.
Specifications
Specifications
- Dimension
- 120 x 90 x 83 mm
- Number of switching positions
- 4x Chisel
- Operating principle
- 1-4. Switch position: Mechanical
- Rated operating voltage Ue
- 1-4. Switch position: 250 VAC
- Approach direction
- longitudinal, parallel to attachment surface
- Switch position spacing
- 12 mm
- Ambient temperature
- -5-85 °C
- Approval/Conformity
- CE, CCC, WEEE
Housing materialAluminum
VersionSafety EN 60204-1
Continuous current1-4. Switch position: 6 A
InstallationVertical
Approach speed1-4. Switch position: 40 m/min
Connection type1-4. Switch position: Screw terminal
IP ratingIP67
