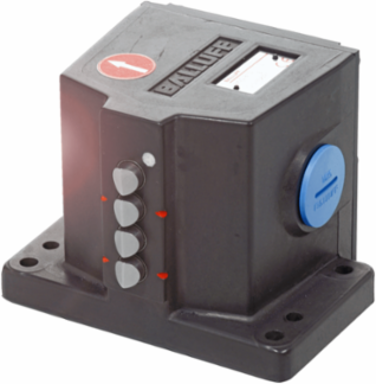

Mechanical multiple position limit switches with safety switch positions BNS 813-D04-R12-100-10-02-FD-S80S

Documentation & Downloads

Balluff BNS 813-D04-R12-100-10-02-FD-S80S Mechanical multiple position limit switches with safety switch positions BNS 813-D04-R12-100-10-02-FD-S80S

MPN: BNS 813-D04-R12-100-10-02-FD-S80S
PPN: BAL-BNS03UR

CAD

$2258.89

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

For safety functions such as Emergency Stop or end-of-travel limitation with safety switches in accordance with DIN EN 60204-1/VDE 0113The switching process is triggered by a rigid ram that actuates a mechanical switching element with positive opening. The switching is protected even with welded contacts.The number of safety switching points can be combined freely and with standard switching elements.

Documentation & Downloads

Specifications

Key Specifications

Dimension: 120 x 90 x 85 mm

Number of switching positions: 4x Roller

Operating principle: 1-4. Switch position: Mechanical

Rated operating voltage Ue: 1-3. Switch position: 6…60 V, 4. Switch position: 30 VAC/36 VDC

Approach direction: longitudinal, parallel to attachment surface

Switch position spacing: 12 mm

Ambient temperature: -5-85 °C

Approval/Conformity: CE, WEEE

Housing materialAluminum

VersionSafety EN 60204-1

Continuous current1-4. Switch position: 4 A

InstallationVertical

Approach speed1-4. Switch position: 60 m/min

Connection type1. Switch position: Connector

IP ratingIP67
