Balluff

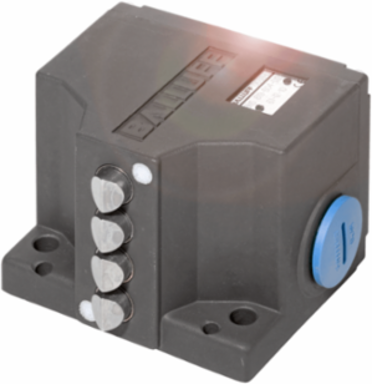

Balluff BNS 819-B06-R12-61-12-10 Mechanical multiple position switches BNS 819-B06-R12-61-12-10

Mechanical multiple position switches BNS 819-B06-R12-61-12-10
  • MPN: BNS 819-B06-R12-61-12-10
  • PPN: BAL-BNS02C8

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1345.85/ EA

Description

Mechanical row-position counters with up to 16 switching points are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.

Specifications

Specifications

Dimension
79 x 84 x 63 mm
Number of switching positions
6x Roller
Operating principle
1-6. Switch position: Mechanical
Rated operating voltage Ue
1-6. Switch position: 250 VAC
Approach direction
longitudinal, parallel to attachment surface
Switch position spacing
12 mm
Ambient temperature
-5-85 °C
Approval/Conformity
CE, CCC, WEEE
Housing materialAluminum
VersionSnap contact
Continuous current1-6. Switch position: 6 A
InstallationVertical
Approach speed1-6. Switch position: 60 m/min
Connection type1-6. Switch position: Screw terminal
IP ratingIP67
