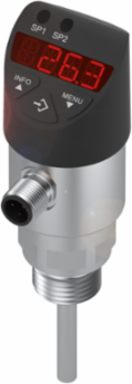

Balluff BFT 6050-HV003-D00A0C-S4 Media-contacting temperature sensors BFT 6050-HV003-D00A0C-S4
- MPN: BFT 6050-HV003-D00A0C-S4
- PPN: BAL-BFT001J
CAD
$673.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Media-contacting temperature sensors BFT 6050-HV003-D00A0C-S4
Documentation & Downloads
Specifications
Key Specifications
| Measuring range | -20-80 °C |
|---|---|
| Operating voltage Ub | 15-35 VDC |
| Connection | Connector, M12x1-Male, 4-pin |
| Process connection | G 1/2" outer |
| Housing material | PC/ABSTPE-E, PC, Stainless steel (1.4301) |
| Ambient temperature | -20-80 °C |
| Approval/Conformity | CE, cULus, WEEE |
| Measuring element | Pt1000 |
|---|---|
| Switching output | 2x PNP |
| Installation length from contact surface | 50 mm |
| Process connection material | Stainless steel (1.4571) |
| Pressure rating max. | 150 bar |
| IP rating | IP65, IP67 |
