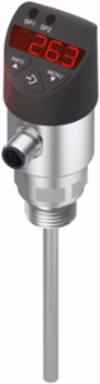

Balluff BFT 6100-HV003-A02A0C-S4 Media-contacting temperature sensors BFT 6100-HV003-A02A0C-S4
- MPN: BFT 6100-HV003-A02A0C-S4
- PPN: BAL-BFT0014
CAD
$673.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Media-contacting temperature sensors BFT 6100-HV003-A02A0C-S4
Documentation & Downloads
Specifications
Key Specifications
- Measuring range
- -20-80 °C
- Operating voltage Ub
- 15-35 VDC
- Switching output
- PNP
- Installation length from contact surface
- 100 mm
- Process connection material
- Stainless steel (1.4571)
- Pressure rating max.
- 150 bar
- IP rating
- IP65, IP67
Measuring elementPt1000
Analog outputAnalog, current 4…20 mA
ConnectionConnector, M12x1-Male, 4-pin
Process connectionG 1/2" outer
Housing materialPC/ABSTPE-E, PC, Stainless steel (1.4301)
Ambient temperature-20-80 °C
Approval/ConformityCE, cULus, WEEE
