Leviton

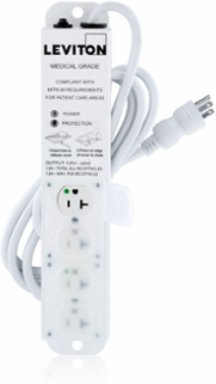

Leviton 5304M-2S7 Medical Grade Power Strip

Medical Grade Power Strip
  • MPN: 5304M-2S7
  • UPC: 078477611906
  • PPN: LEV-5304M-2S7

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$316.43/ EA

Description

20 Amp (16 Amp Max Continuous Load) 125VAC, Medical Grade Surge Protective Power Strip With 4 NEMA 5-20R Outlets With Locking Covers, 7-FT Power Cord, Special Purpose Relocatable Power Tap (SPRPT), UL 1363A, UL 60601-1, UL 60950-1, and UL 1449 Operable in Isolated Power Applications White powder coating contains up to 25% post-consumer recycled plastic, mitigating plastic waste and reducing carbon emissions

Features

  • According to Centers for Medicare & Medicaid Services (CMS): "Power strips providing power to patient care-related electrical equipment must be Special-Purpose Relocatable Power Taps (SPRPT) listed as UL 1363A or UL 60601-1."

Specifications

Standards and Certifications

ANSI/IEEE
Category A
UL 1363A and CSA C22.2
No. 21
UL 60601-1 and CSA C22.2
No.60601-1
NFPANFPA 99 2012 ed
UL 1449 3rd Ed and CSA C22.2No. 8
UL 60950-1 and CSA C22.2No. 60950-1

Performance Data

Inform Technology
No
MCOV
150V
Maximum Surge Current, Per Mode (L-N)
27kA
Voltage Protection Rating (VPR) L-N, L-G, N-G
600V, 600V, 500V
Joules Rating644J
Maximum Leakage Current<100µA
Noise Filtering-6dB to -29dB (100kHz to 100MHz)

Material Specifications

Enclosure
Powder Coated Steel
Outlet Covers
Polypropylene
Line Cord#12/3 SJT

Mechanical Specifications

HG Outlet Configuration
NEMA 5-20R
HG Plug ConfigurationNEMA 5-20P

Specifications

Country of Origin
Mexico
RoHS CompliantFalse

Warranty

Warranty
5-Year Limited

Environmental Specifications

Operating Temperature
0°C to 40°C
Storage Temperature-10°C to +50°C

Electrical Specifications

Amperage
20 A
Frequency
60Hz
Number of Receptacles
4
Surge Technology
MOV
Cord Length7 Foot
GradeMedical
Surge ProtectionYes
Voltage125 VAC

Downloads
