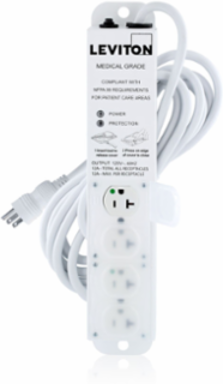

Leviton 5304M-2S5 Medical Grade Surge Protective Power Strip with 4 NEMA 5-20R Outlets, 20A, 15 Foot Cord
Leviton 5304M-2S5 Medical Grade Surge Protective Power Strip with 4 NEMA 5-20R Outlets, 20A, 15 Foot Cord
- MPN: 5304M-2S5
- UPC: 078477611913
- PPN: LEV-5304M-2S5
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$336.86/ EA
Description
20 Amp (16 Amp Max Continuous Load) 125VAC, Medical Grade Surge Protective Power Strip With 4 NEMA 5-20R Outlets With Locking Covers, 15-FT Power Cord, Special Purpose Relocatable Power Tap (SPRPT), UL 1363A, UL 60601-1, UL 60950-1, and UL 1449 Operable in Isolated Power Applications. White powder coating contains up to 25% post-consumer recycled plastic, mitigating plastic waste and reducing carbon emissions
Features
- According to Centers for Medicare & Medicaid Services (CMS): "Power strips providing power to patient care-related electrical equipment must be Special-Purpose Relocatable Power Taps (SPRPT) listed as UL 1363A or UL 60601-1."
Specifications
Standards and Certifications
- ANSI/IEEE
- Category A
- UL 1363A and CSA C22.2
- No. 21
- UL 60601-1 and CSA C22.2
- No.60601-1
NFPANFPA 99 2012 ed
UL 1449 3rd Ed and CSA C22.2No. 8
UL 60950-1 and CSA C22.2No. 60950-1
Performance Data
- Inform Technology
- No
- MCOV
- 150V
- Maximum Surge Current, Per Mode (L-N)
- 27kA
- Voltage Protection Rating (VPR) L-N, L-G, N-G
- 600V, 600V, 500V
Joules Rating644J
Maximum Leakage Current<100µA
Noise Filtering-6dB to -29dB (100kHz to 100MHz)
Material Specifications
- Enclosure
- Powder Coated Steel
- Outlet Covers
- Polypropylene
Line Cord#12/3 SJT
Mechanical Specifications
- HG Outlet Configuration
- NEMA 5-20R
HG Plug ConfigurationNEMA 5-20P
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Operating Temperature
- 0°C to 40°C
Storage Temperature-10°C to +50°C
Electrical Specifications
- Amperage
- 20 A
- Frequency
- 60Hz
- Number of Receptacles
- 4
- Surge Technology
- MOV
Cord Length15 Foot
GradeMedical
Surge ProtectionYes
Voltage125 VAC
