Leviton

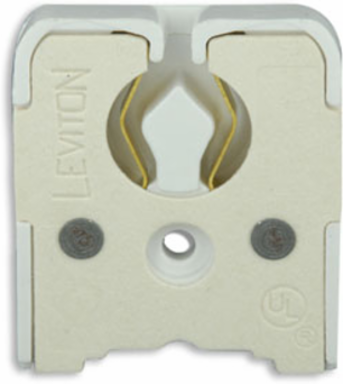

Leviton 431-W Medium Base, Bi-Pin, Standard Fluorescent Lampholder, Butt-On, Screw Mount, Turn-Type, , Quickwire 18AWG Solid or Str Tinned - White

Medium Base, Bi-Pin, Standard Fluorescent Lampholder, Butt-On, Screw Mount, Turn-Type, , Quickwire 18AWG Solid or Str Tinned - White
  • MPN: 431-W
  • UPC: 078477142417
  • PPN: LEV-431-W

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4.39/ EA

Description

Medium Base, Bi-Pin, Standard Fluorescent Lampholder, Butt-On, Screw Mount, Turn-Type, , Quickwire 18AWG Solid or Str Tinned - White

Specifications

Product Features

Warranty
1 Year Limited
Light Type
Fluorescent
Standards and Certifications
UL/CSA/NOM
Lamp Base
Medium
Body Material
Thermoset
Contact Type
Turn-Type
Lampholder Type
Linear
Rated Wattage
660W
Mounting TypeScrew Mount
ColorWhite
Country Of OriginMexico
Lamp ContactsBi-Pin
Style NameButt-On
TerminationQuickwire 18AWG Solid or Str. Tinned
AvailabilityDistribution
Contact MaterialCopper-Alloy

Standards and Certifications

NOM Certified
057
UL Listed
File E5833
CSA CertifiedFile LR-1863

Mechanical Specifications

Mounting Type
Screw Mount
Wire Strip Length
3/8 Inch
Termination
Quickwire 18AWG Solid or Str. Tinned
Voltage600 Volt
Contact TypeTurn-Type
Rated Wattage660W
