Leviton

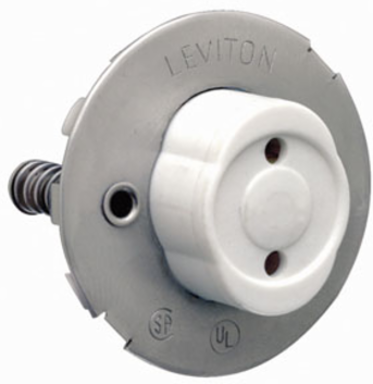

Leviton 13518 Medium Base, Bi-Pin, Standard Fluorescent Lampholder, Snap-In, Plunger, Quickwire 18AWG Solid or Str Tinned - White

Medium Base, Bi-Pin, Standard Fluorescent Lampholder, Snap-In, Plunger, Quickwire 18AWG Solid or Str Tinned - White
  • MPN: 13518
  • UPC: 078477168561
  • PPN: LEV-13518

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$13.64/ EA

Description

Medium Base, Bi-Pin, Standard Fluorescent Lampholder, Snap-In, Plunger, Quickwire 18AWG Solid or Str Tinned - White

Specifications

Standards and Certifications

CSA Certified
File LR-5863
UL ListedFile E5833

Mechanical Specifications

Contact Type
Plunger
Panel Thickness
.035 - .050
Termination
Quickwire 18AWG Solid
Mounting TypeSnap-In
Rated Wattage660W
Voltage600 VAC

Specifications

Country of Origin
Mexico
RoHS CompliantFalse

Product Features

Base Material
Thermoplastic
Color
White
Lamp Base
Medium
Lampholder Type
Linear
Standards and Certifications
UL/CSA
Body MaterialThermoset
Contact MaterialCopper-Alloy
Lamp ContactsBi-Pin
Light TypeFluorescent
Warranty1 Year Limited

Environmental Specifications

Operating Temperature
0°C to 140°C
Storage Temperature Range
Ambient (around 25°C)
Relative HumidityDry locations use only per UL 496 standard

Downloads
