Leviton

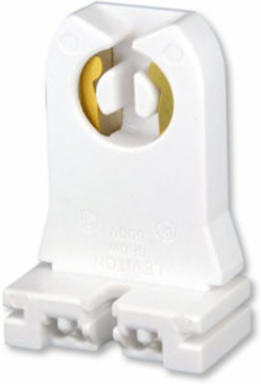

Leviton 13354 Medium Base, Bi-Pin, Standard Fluorescent Lampholder, Tall Profile, Slide-On, Turn-Type, Quick-Connect 18AWG Solid or Str. Tinned - White

Medium Base, Bi-Pin, Standard Fluorescent Lampholder, Tall Profile, Slide-On, Turn-Type, Quick-Connect 18AWG Solid or Str. Tinned - White
  • MPN: 13354
  • UPC: 078477828199
  • PPN: LEV-13354

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1.39/ EA

Description

Medium Base, Bi-Pin, Standard Fluorescent Lampholder, Tall Profile, Slide-On, Turn-Type, Quick-Connect 18AWG Solid or Str. Tinned - White

Specifications

Mechanical Specifications

Availability
Distribution
Color
White
Contact Type
Turn-Type
Panel Thickness
20 Ga. Panel
Wire Strip Length
3/8 Inch
Body MaterialThermoset
Contact MaterialCopper-Alloy
Mounting TypeSlide-On
TerminationQuick-Connect 18AWG Solid or Str. Tinned

Product Features

Lamp Base
Medium
Lampholder Type
Linear
Rated Wattage
660W
Style Name
Tall Profile
Warranty
1 Year Limited
Lamp ContactsBi-Pin
Light TypeFluorescent
Standards and CertificationsUL/CSA/NOM
Voltage600 Volt

Standards and Certifications

CSA Certified
File LR-5863
UL Listed
File E5833
NOM Certified057

Specifications

Country of Origin
Please Contact Customer Service
RoHS CompliantTrue
