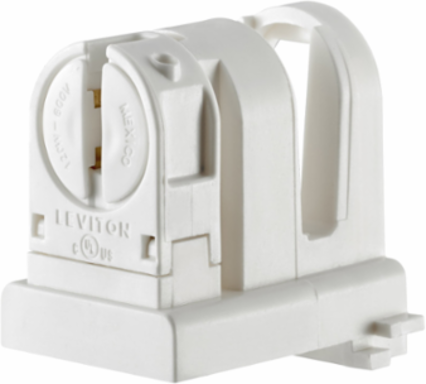

Leviton 13654-EXL Medium to Miniature Base, T5 Bi-Pin, Standard Fluorescent Lampholder, Long T-8 to T-5 Adapter, Slide-On, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White

Medium to Miniature Base, T5 Bi-Pin, Standard Fluorescent Lampholder, Long T-8 to T-5 Adapter, Slide-On, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White

MPN: 13654-EXL
UPC: 078477259917
PPN: LEV-13654-EXL

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4.73/ EA

Qty:

Loading add to cart quantity...

Description

Medium to Miniature Base, T5 Bi-Pin, Standard Fluorescent Lampholder, Long T-8 to T-5 Adapter, Slide-On, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White

Features

Simple, cost-effective solution enables OEM's to incorporate miniature bi-pin T-5 lamps into existing T-8 fixture design
No change in socket bar tooling required
Fits existing slide-on T-8 lampholder cutouts and compensates for variations in T-5 lamp lengths
4-position, positive-stop lamp-lock socket makes it simple for end users to relamp in service
Long and Short lengths available
Available shunted and non-shunted

Specifications

Mechanical Specifications

Contact Type: Lamp-Lock

Panel Thickness: 20 Ga. Panel

Termination: Quickwire 18AWG Solid or Str. Tinned

Wire Strip Length: 3/8 Inch

Mounting TypeSlide-On

Rated Wattage660W

Voltage600 Volt

Product Features

Availability: OEM Only

Color: White

Lamp Base: Medium to Miniature

Lamp Type: T5

Light Type: Fluorescent

Style Name: Long T-8 to T-5 Adapter

Body MaterialThermoplastic

Contact MaterialCopper-Alloy

Lamp ContactsBi-Pin

Lampholder TypeLinear

Standards and CertificationsUL/CSA/NOM

Warranty1 Year Limited

Specifications

Country of Origin: Mexico

RoHS CompliantFalse

Standards and Certifications

CSA Certified: File LR-1863

UL Listed: File E5833

NOM Certified057
