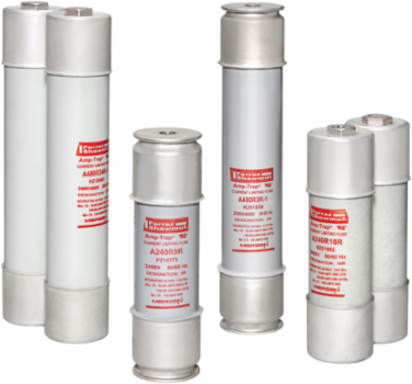

Mersen A480R5R-1 Medium Voltage Fuse 4800V 3 Inch Ferrule Mount R-Rated
- MPN: A480R5R-1
- UPC: 782001800611
- PPN: FER-A480R5R-1
CAD
$2785.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses come with a 3 (size D) or 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clips
Specifications
Key Specifications
| Rated voltage AC UL | 4800 V |
|---|---|
| ROHS Compliant | Yes |
| Speed/Characteristic | R-Rated |
| AC Max I.R./Breaking Capacity: I1 | 65 kA |
| Indication System | Yes |
| Connection/Terminal Material | Silver-Plated Copper |
| Body/Insulating Material | Epoxy |
| Length | 15.88 in |
| Weight | 10.48 lb |
| Frequency (Hz) | 50/60 Hz |
|---|---|
| AC or DC | AC |
| Mounting | Clip |
| Design Details | 5R |
| Indication System Type | Visual Indicator |
| Connection/Terminal Type | Ferrule |
| Width | 3 in |
| Height | 3 in |
