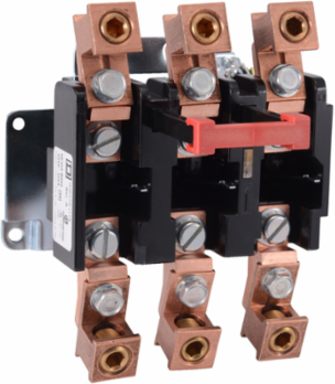

Square D 9065SEO15 Overload Relay NEMA Size 4, 3 Pole, Melting Alloy, 133A, 600V AC
- MPN: 9065SEO15
- UPC: 785901850823
- PPN: SCH-9065SEO15
CAD
$897.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Overload relays are intended to protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses, circuit breakers, or motor short circuit protectors. The exclusive one piece melting alloy thermal unit is used in these relays to provide protection against overheating of the motor winding insulation due excessive over current. The melting alloy thermal unit to be used is determined by the full load current of the motor to be controlled, number of phases and the enclosure size. This 133A separate mount overload relay can be used with NEMA size 4 three phase starters with 3 poles. When 3 thermal units are properly installed the relay can be reset. Overload relay has a trip free reset mechanism. The output contact is replaceable. Relay has a maximum voltage rating of 600 VAC. This overload relay is 6.97 inches tall, 5.31 inches wide and 5.75 inches deep. This separate mount overload relay is UL Listed and CSA Certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth146.1 mm
Complementary Attributes
- Ue Rated Operational Voltage
- 600 V AC
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase A4
- 1.6155301686391303, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 1.0199429398230575, 1 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 5 kg CO2 eq., 5.069037029711683
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI1312002EN
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Mounting Support
- panel
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 38 kg CO2 eq.
- Pep Code
- ENVPEP1312002EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 177 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End Of Life Phase C1 To C43 kg CO2 eq., 3.1585460190956214
Carbon Footprint Of The Manufacturing Phase A1 To A327 kg CO2 eq., 27.063423721971436
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Rohs Eur In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Number Of Thermal Units Required3
Range Of ProductSeparate Mounting
Software Versionv6.2.5-6
Thermal Overload Typemelting alloy
Warranty In Months18
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %42
Width Nominal134.9 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI1312002EN
- Eu Rohs Directive
- Not compliant
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP1312002EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Carbon Footprint37.92647987924093
Environmental DisclosureENVPEP1312002EN
Nema Size4
Packaging Without Single Use PlasticNo
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Range Of Product
- Separate Mounting
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
