Modicon M221 Logic Controller, 16 IO, 7 Relay Outputs, 100-240V AC
Schneider Electric

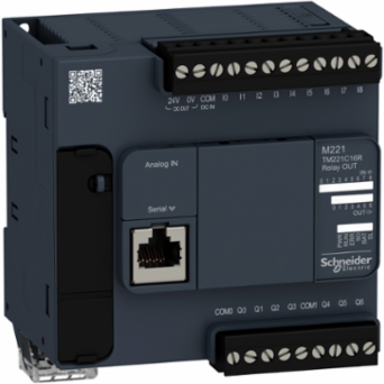

Schneider Electric TM221C16R Modicon M221 Logic Controller, 16 IO, 7 Relay Outputs, 100-240V AC

  • MPN: TM221C16R
  • PPN: SCH-TM221C16R

CAD

$390.52

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Modicon M221 Logic Controller, 16 IO, 7 Relay Outputs, 100-240V AC

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Taiwan, United States
Depth70 mm

Communications & Management Attributes

Communication Port Protocol
USB port USB - SoMachine-Network, non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network

Complementary Attributes

Integrated Connection Type
USB port mini B USB 2.0, non isolated serial link serial 1 RJ45 RS485, non isolated serial link serial 2 RJ45 RS232/RS485
Maximum Current Per Output Common
6 A COM 1, 7 A COM 0
Maximum Size Of Object Areas
512 %KW constant words, 512 %M memory bits, 255 %C counters, 8000 %MW memory words, 255 %TM timers
Maximum Cable Distance Between Devicesshielded cable <10 m fast input, unshielded cable <30 m output, unshielded cable <30 m digital input, unshielded cable <1 m analog input
Maximum Power Consumption In Va46 VA 100...240 V with max number of I/O expansion module, 31 VA 100...240 V without I/O expansion module
Minimum Load1 mA 5 V DC relay output

Important Information Attributes

Persona Type Ids
EU, OM, OM8
Clock Drift
<= 30 s/month 25-25 °C, <= 30 s/month 25-25 °C<= 30 s/month 25-25 °C, <= 30 s/month 25-25 °C
Control Signal Type
single phase, frequency meter, dual phase (quadrature), dual phase (pulse/direction)
Electrical Durability
100000 cycles AC-14, cos phi = 0.7 , 240 V, 240 VA, inductive, 300000 cycles AC-14, cos phi = 0.7 , 120 V, 36 VA, inductive100000 cycles AC-12, 120 V, 240 VA, resistive, 100000 cycles AC-12, 240 V, 480 VA, resistive, 300000 cycles AC-12, 120 V, 80 VA, resistive, 300000 cycles AC-12, 240 V, 160 VA, resistive, 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, inductive, 100000 cycles AC-15, cos phi = 0.35 , 240 V, 120 VA, inductive, 300000 cycles AC-15, cos phi = 0.35 , 120 V, 18 VA, inductive, 300000 cycles AC-15, cos phi = 0.35 , 240 V, 36 VA, inductive, 100000 cycles AC-14, cos phi = 0.7 , 120 V, 120 VA, inductive, 300000 cycles AC-14, cos phi = 0.7 , 240 V, 72 VA, inductive, 100000 cycles DC-12, 24 V, 48 W, resistive, 300000 cycles DC-12, 24 V, 16 W, resistive, 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms), 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
Insulation
between input and internal logic 500 V AC, non-insulated between analogue input and internal logic, non-insulated between analogue inputs, between supply and ground 1500 V AC, between sensor power supply and ground 500 V AC, between input and ground 500 V AC, between output and ground 1500 V AC, between supply and internal logic 2300 V AC, between sensor power supply and internal logic 500 V AC, between output and internal logic 2300 V AC, between Ethernet terminal and internal logic 500 V AC, between supply and sensor power supply 2300 V AC
Memory Capacity
256 kB user application and data RAM 10000 instructions, 256 kB internal variables RAM
Resistance To Conducted Disturbances
10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance To Electrostatic Discharge
8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2
Response Time
10 ms turn-off output, 5 µs turn-off, I0, I1, I6, I7 fast input35 µs turn-off, I2...I5 input, 10 ms turn-on output, 5 µs turn-on, I0, I1, I6, I7 fast input, 35 µs turn-on, other terminals input, 100 µs turn-off, other terminals input
Vibration Resistance
1 gn 8.4-150 Hz panel mounting3.5 mm 5-8.4 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting, 1 gn 8.4-150 Hz symmetrical rail
Voltage State 1 Guaranteed
>= 15 V input, >= 15 V input>= 15 V input, >= 15 V input
Maximum Number Of I/O Expansion Module
4 (local I/O-Architecture), 11 (remote I/O-Architecture)
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.6535249198975186, 0.7 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
11 kg CO2 eq., 11.102144169944033
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Serviceability
Yes
Field Service Division
IDIBS
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI1403012EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1901
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier Id
1
Function Option Id
STANDARD
Market Segmentation Id
INDUSTRIAL
Product Kit Identifier
N
Data Backed Up
256 kB built-in flash memory backup of application and data
Environmental Characteristic
ordinary and hazardous location
Execution Time For 1 Kinstruction
0.3 ms event and periodic task
Immunity To Microbreaks
10 ms
Lsb Value
10 mV
Mechanical Durability
20000000 cycles relay output
Product Availability
Stock - Normally stocked in distribution facility
Protection Type
without protection 5 A
Realtime Clock
with
Reset Time
1 s
Returnability
Yes
Shock Resistance
98 m/s² 11 ms
Supply
serial)serial link supply 5 V, <200 mA
Sustainable Packaging
Yes
Total Lifecycle Carbon Footprint
78 kg CO2 eq.
Pep Code
ENVPEP1403012EN
Pep Verification Date
2024-11-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
10
Energy Model - Installation [A5]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal
95 mm
Discrete I/O Number
16
Package Weight(Lbs)
300.0 g
Warranty (In Months)
18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Configurable Filtering Time0 ms input, 3 ms input, 12 ms input
Electrical Connectionremovable screw terminal block for inputs, removable screw terminal block for outputs, terminal block, 3 for connecting the 24 V DC power supply, connector, 4 for analogue inputs, mini B USB 2.0 connector for a programming terminal
Electromagnetic Emissionconducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011, conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011, conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011, conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011, conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
Local Signalling1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED per channel (green) for I/O state
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Resistance To Electromagnetic Fields10 V/m 80 MHz...1 GHz IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3, 1 V/m 2...2.7 GHz IEC 61000-4-3
Resistance To Fast Transients2 kV IEC 61000-4-4 power lines), 2 kV IEC 61000-4-4 relay output), 1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link)
Transmission Rate1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232, 480 Mbit/s USB
Voltage State 0 Guaranteed<= 5 V input, <= 5 V input<= 5 V input, <= 5 V input
Certificate AgencyRCM, ABS, LR, DNV-GL, EAC, cULus, CE, UKCA, cULus HazLoc
Carbon Footprint Of The Distribution Phase [A4]0.6869216485302384, 0.7 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.005100009556700557
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]66 kg CO2 eq., 65.71929521021859
Local Publishable Date2026-01-12
Stocking FlagN
Device TypePLC System - PLC CPU
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
Tier1
Function OptionStandard
Market SegmentationIndustrial
Conversion Time1 ms per channel + 1 controller cycle time analog input
Data Storage Equipment2 GB SD card optional)
Exct Time For Event Task60 µs response time
Execution Time Per Instruction0.2 µs Boolean
Inrush Current40 A
MarkingCE
Network Frequency50/60 Hz
Product Or Component Typelogic controller
Range Of ProductModicon M221
Regulation Loopadjustable PID regulator up to 14 simultaneous loops
Resistance To Magnetic Fields30 A/m 50/60 Hz IEC 61000-4-8
Sensor Power Supply24-24 V DC 250 mA supplied by the controller
Software Versionv6.2.2
Supply Voltage Limits85-264 V
Switching Frequency20 switching operations/minute with maximum load
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo perform control for applications using I/O communication from 16 to 40 I/Os, Ethernet (RJ45) or Serial Link (RJ45) communication, and optional I/O modules, 57,20% of the time for 10 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Taiwan, TW
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal90 mm
[Us] Rated Supply Voltage100...240 V AC
Nbr. Of Units In Pkg.1
Take-backNo

Environment Attributes Main

Ambient Air Temperature For Operation
-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation)
Relative Humidity
10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Circularity Profile
ENVEOLI1403012EN
Eu Rohs Directive
Compliant By Exemption
Operating Altitude
0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic
No
Storage Altitude
0-3000 m
Pep Verification Date
2024-11-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint78.16698595814708
Environmental DisclosureENVPEP1403012EN
Ip Degree Of ProtectionIP20 with protective cover in place
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1403012EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
logic controller
Range Of ProductModicon M221

ETIM

ETIM 8
EC000236
ETIM 9EC000236

Output Attributes

Discrete Output Voltage
5...125 V DC, 5...250 V AC
Output Voltage Limits
125 V DC, 277 V AC
Discrete Output Current
2 A
Discrete Output Type
relay normally open
Maximum Current Per Output Common6 A COM 1, 7 A COM 0
Power Supply Output Current0.325-0.325 A 5 V expansion bus, 0.12-0.12 A 24 V expansion bus
Discrete Output Number7 relay

Surge Protection And Filtering Attributes

Configurable Filtering Time
0 ms input, 3 ms input, 12 ms input
Surge Withstand1 kV power lines (AC) differential mode IEC 61000-4-5, 1 kV relay output differential mode IEC 61000-4-5, 0.5 kV power lines (DC) common mode IEC 61000-4-5, 2 kV power lines (AC) common mode IEC 61000-4-5, 2 kV relay output common mode IEC 61000-4-5, 1 kV I/O common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV power lines (DC) differential mode IEC 61000-4-5

Input Attributes

Discrete Input Current
7 mA discrete input, 5 mA fast input
Permitted Overload On Inputs
+/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input
Analogue Input Resolution
10 bits
Discrete Input Logic
sink or source (positive/negative)
Discrete Input Voltage
24 V
Input Impedance3.4 kOhm discrete input, 100 kOhm analog input, 4.9 kOhm fast input
Analogue Input Number2 0...10 V
Counting Input Number4 fast input (HSC mode) 100 kHz 32 bits
Discrete Input Number9 , discrete input IEC 61131-2 Type 1
Discrete Input Voltage TypeDC

Batteries & Runtime Attributes

Battery Type
BR2032 or CR2032X lithium non-rechargeable
