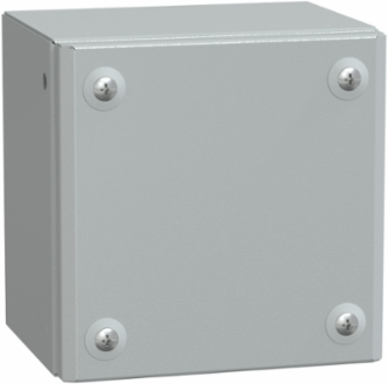

Schneider Electric NSYSBM151512 Metal Industrial Box 150 x 150 x 120 mm IP66 IK10 RAL 7035
- MPN: NSYSBM151512
- PPN: SCH-NSYSBM151512
CAD
$98.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

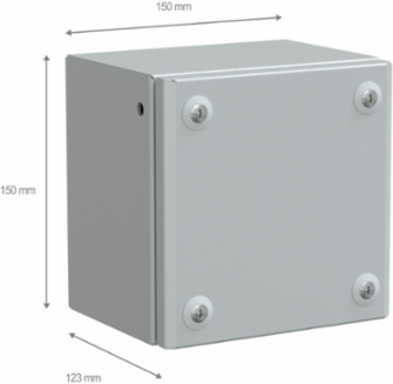

Industrial box for Spacial SBM. Multi purpose. 150 x 150 x 120 mm. Flat face box. Wall mounted on enclosure. Single piece body folded and welded. Cover fixing with half turn metal srew. Cover by 4 captive screw PZ2 outside sealed area. Made sheet of stee with polyester powder finish. Protection IP 66, IK10.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France, India
Physical Attributes
- Color
- Gray RAL 7035)
- Enclosure Nominal Width
- 150 mm
Enclosure Nominal Height150 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 4 cover screw1 cover, 1 body
- Carbon Footprint Of The Distribution Phase [A4]
- 2.592831424799109, 3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1609687364155886, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-05-30
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1910
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Body Type
- single piece body folded and welded
- Device Application
- multi-purpose
- Enclosure Mounting
- wall mounted
- Energy Efficiency Optimized
- False
- Material
- sheet steel
- Product Name
- PanelSeT SBM
- Range
- PanelSeT
- Returnability
- No
- Surface Finish
- polyester powder
- Total Lifecycle Carbon Footprint
- 12 kg CO2 eq.
- Pep Code
- ENVPEP1210023EN
- Pep Verification Date
- 2024-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Certificate AgencyDNV-GL, UL, BV
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 3.1801014064685
Carbon Footprint Of The Manufacturing Phase [A1 To A3]6 kg CO2 eq., 6.150822884131318
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Cover Fixinghalf turn metal screw
Device Short NameSBM
Enclosure Typeflat face box
Lock Typecaptive screw PZ2 outside sealed area
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeindustrial box
Removable Partscover by captive screws
Software Versionv6.1
Sustainable PackagingNo
Type Of Front Coverplain door
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %96
Package Weight(Lbs)1.306 kg
Take-backNo
Customs Code7326908688
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -35-60 °C, -35-60 °C
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP1210023EN
- Ip Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-35-80 °C, -35-80 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint12.084724451814516
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1210023EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- industrial box
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
