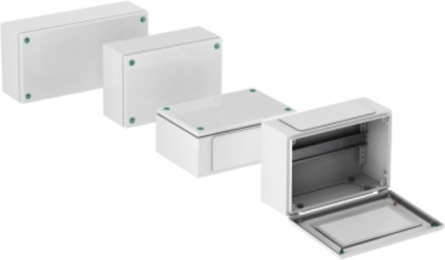

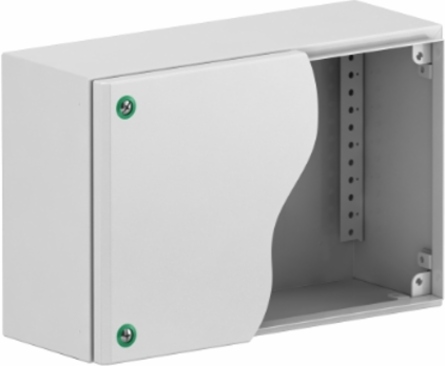

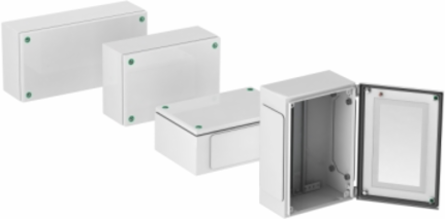

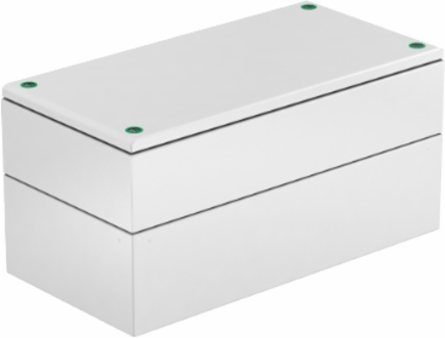

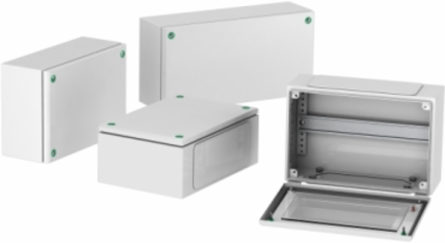

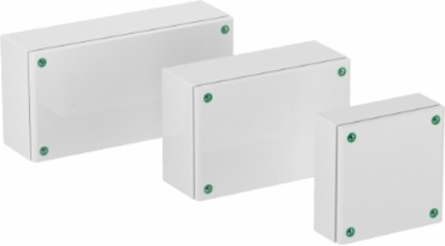

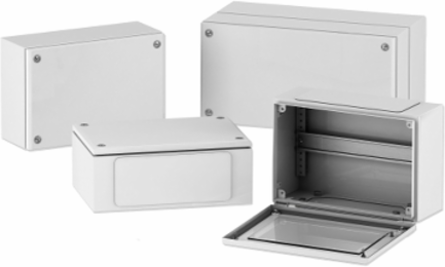

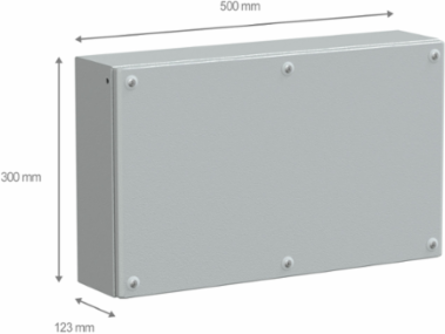

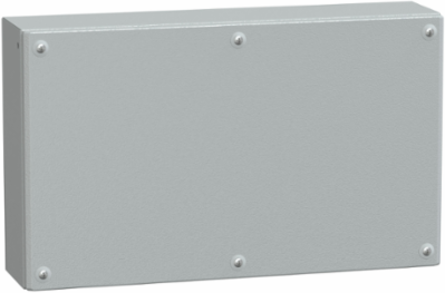

Schneider Electric NSYSBM305012 Metal Industrial Box 300x500x120 mm, IP66, IK10, Gray RAL 7035
- MPN: NSYSBM305012
- PPN: SCH-NSYSBM305012
- UNSPSC: 39121324
CAD
$205.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Industrial box for Spacial SBM. Multi purpose. 300 x 500 x 120 mm. Flat face box. Wall mounted on enclosure. Single piece body folded and welded. Cover fixing with half turn metal srew. Cover by 4 captive screw PZ2 outside sealed area. Made sheet of stee with polyester powder finish. Protection IP 66, IK10.
Features
- PanelSet SBM steel industrial box is designed for versatile applications.
- Suitable for use in harsh and challenging environments.
- Highly resistant to dust and water penetration with IP66 rating.
- Made of sheet steel with grey color (RAL7035) and powder finish.

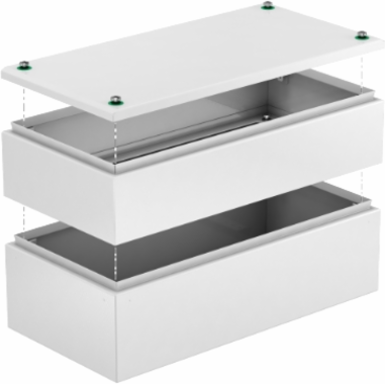

- Consists of 1 cover, 1 body, and 6 cover screws for secure closure.

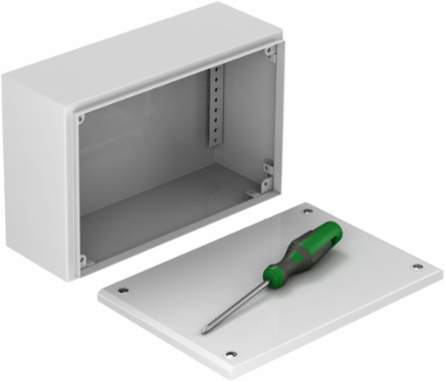

- Easy maintenance with removable cover for convenient access.
- Lightweight enclosure with a net weight of only 5.8kg.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | India |
|---|
| Weight | 5838 g |
|---|
Physical Attributes
| Color | Gray RAL 7035) |
|---|---|
| Enclosure Nominal Width | 500 mm |
| Enclosure Nominal Height | 300 mm |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 1 cover, 1 body6 cover screw |
| Carbon Footprint Of The Distribution Phase A4 | 11.590313826935066, 12 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.7195524373615667, 0.7 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-15 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1910 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Body Type | single piece body folded and welded |
| Device Application | multi-purpose |
| Enclosure Mounting | wall mounted |
| Energy Efficiency Optimized | False |
| Material | sheet steel |
| Product Name | PanelSeT SBM |
| Range | PanelSeT |
| Returnability | No |
| Surface Finish | polyester powder |
| Total Lifecycle Carbon Footprint | 54 kg CO2 eq. |
| Database Version | 2023-02 |
| Nbr. Of Units In Pkg. | 1 |
| Silicone Free | Yes |
| Functional Unit Description | Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 96 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | DNV-GL, UL, BV |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 14 kg CO2 eq., 14.215491585729787 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 27 kg CO2 eq., 27.49502603182131 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Cover Fixing | half turn metal screw |
| Device Short Name | SBM |
| Enclosure Type | flat face box |
| Lock Type | captive screw PZ2 outside sealed area |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | industrial box |
| Removable Parts | cover by captive screws |
| Software Version | v6.1 |
| Sustainable Packaging | No |
| Type Of Front Cover | plain door |
| Data Source | extrapolated product |
| Customs Code | 7326908688 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Ambient Air Temperature For Storage | -35-60 °C, -35-60 °C |
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Silicon Free | Yes |
| Environmental Disclosure | ENVPEP1210023EN |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-09-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Ambient Air Temperature For Operation | -35-80 °C, -35-80 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 54.02038388184773 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1210023EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | industrial box |
|---|
ETIM
| ETIM 8 | EC000261 |
|---|---|
| ETIM 10 | EC000261 |
| ETIM 9 | EC000261 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
