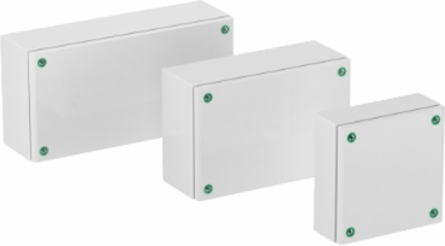

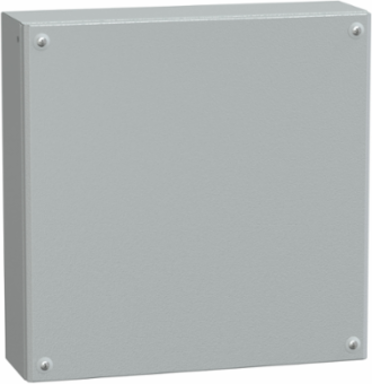

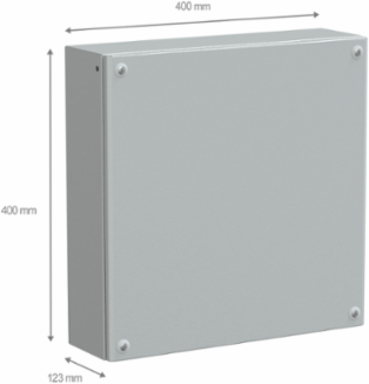

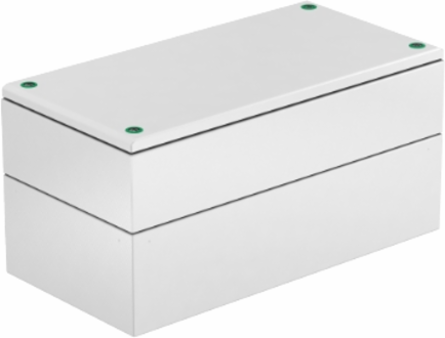

Schneider Electric NSYSBM404012 Metal Industrial Box 400x400x120 mm, IP66, IK10, Gray RAL 7035
- MPN: NSYSBM404012
- PPN: SCH-NSYSBM404012
CAD
$177.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

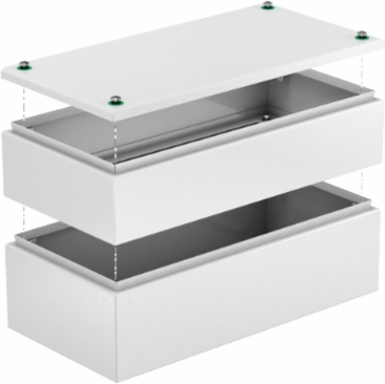

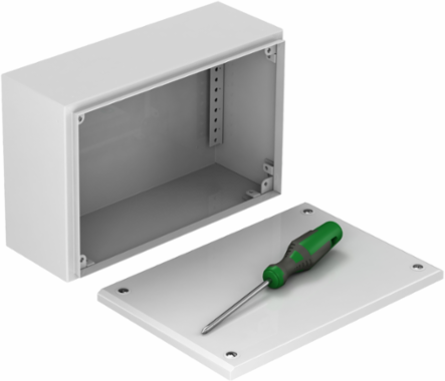

Industrial box for Spacial SBM. Multi purpose. 400 x 400 x 120 mm. Flat face box. Wall mounted on enclosure. Single piece body folded and welded. Cover fixing with half turn metal srew. Cover by 4 captive screw PZ2 outside sealed area. Made sheet of stee with polyester powder finish. Protection IP 66, IK10.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, India, United States
Physical Attributes
- Color
- Gray RAL 7035)
- Enclosure Nominal Width
- 400 mm
Enclosure Nominal Height400 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 4 cover screw1 cover, 1 body
- Carbon Footprint Of The Distribution Phase [A4]
- 10.649270874902312, 11 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.6611303997957252, 0.7 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-05-30
- Stocking Flag
- Y
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cover Fixing
- half turn metal screw
- Device Short Name
- SBM
- Enclosure Type
- flat face box
- Lock Type
- captive screw PZ2 outside sealed area
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- industrial box
- Removable Parts
- cover by captive screws
- Software Version
- v6.1
- Sustainable Packaging
- No
- Type Of Front Cover
- plain door
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential In %
- 96
- Package Weight(Lbs)
- 5.364 kg
- Take-back
- No
- Customs Code
- 7326908688
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Certificate AgencyDNV-GL, UL, BV
Carbon Footprint Of The End-of-life Phase [C1 To C4]13 kg CO2 eq., 13.061304704668478
Carbon Footprint Of The Manufacturing Phase [A1 To A3]25 kg CO2 eq., 25.26264467877518
Local Data StatusPublishable
Return IndicatorN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1910
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Body Typesingle piece body folded and welded
Device Applicationmulti-purpose
Enclosure Mountingwall mounted
Energy Efficiency OptimizedFalse
Materialsheet steel
Product NamePanelSeT SBM
RangePanelSeT
ReturnabilityNo
Surface Finishpolyester powder
Total Lifecycle Carbon Footprint50 kg CO2 eq.
Pep CodeENVPEP1210023EN
Pep Verification Date2024-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -35-60 °C, -35-60 °C
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP1210023EN
- Ip Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-35-80 °C, -35-80 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint49.6343506581417
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1210023EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- industrial box
ETIM
- ETIM 8
- EC002713
ETIM 9EC002713
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
