Schneider Electric NSYPMM1510 Metallic mounting plate for PLA enclosure H1500xW1000mm
Schneider Electric NSYPMM1510 Metallic mounting plate for PLA enclosure H1500xW1000mm
- MPN: NSYPMM1510
- PPN: SCH-NSYPMM1510
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$248.71/ EA
Description

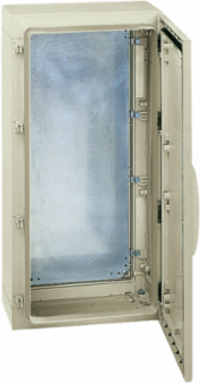

Thalassa PLA metallic mounting plate. For enclosure H is1500 x W is1000 mm. Step slides mounting location or on back inserts location (fixing by screw type M8). Plain mounting plate. 150 Kg permanent permissible load. Galvanised Steel. Grey RAL 7035.
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Carbon Footprint Of The Distribution Phase A4
- 45.42616832375835, 45 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.7446032767275189, 0.7 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-04-18
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Material
- galvanised steel
- Permanent Permissible Load
- 150 kg
- Product Or Component Type
- mounting plate
- Returnability
- No
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 234 kg CO2 eq.
- Silicone Free
- Yes
- Pep Code
- ENVPEP2202003EN
- Pep Verification Date
- 2024-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Offer Owner Code
- 190789
- Height Nominal
- nominal: 1500 mm
- Width Nominal
- nominal: 1000 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Locationstep slide, back inserts
Carbon Footprint Of The End Of Life Phase C1 To C465 kg CO2 eq., 65.218484713281
Carbon Footprint Of The Manufacturing Phase A1 To A3123 kg CO2 eq., 123.0654115382395
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Composition1 mounting plate
Fixing Modeby screws M8 - on back inserts
Mounting Plate Descriptionplain
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Software Versionv6.1
Thickness2.5 mm
Accessory Separate Part Categorymounting accessory
Warranty In Months18
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential, In %98
Pn1
Height Usefulreal: 1390 mm
Width Realreal: 875 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2202003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint234.45466785200637
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-12-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Brazil, Spain, France
- Width
- 34.45 in
Height54.72 in
