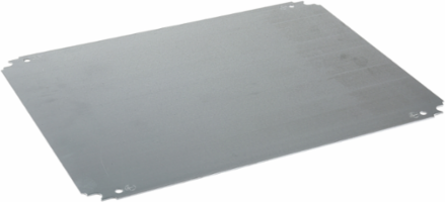

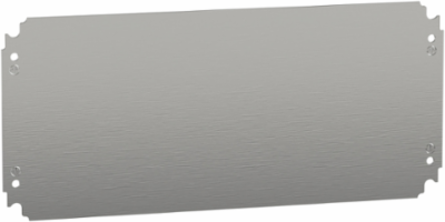

Schneider Electric NSYMM2550 Plain Mounting Plate 250x500mm Galvanized Steel, 1.8mm Thickness, 60kg Load
Schneider Electric NSYMM2550 Plain Mounting Plate 250x500mm Galvanized Steel, 1.8mm Thickness, 60kg Load
- MPN: NSYMM2550
- PPN: SCH-NSYMM2550
- UNSPSC: 39121323
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$32.48/ EA
Description
Constructed from durable galvanized sheet steel, this plain mounting plate is designed for a variety of applications, providing a robust solution for your mounting needs. Measuring 250 mm in height and 500 mm in width, it supports a permanent permissible load of up to 60 kg, making it ideal for secure installations. With a thickness of 1.8 mm, this mounting plate is engineered for direct fixing on backstuds or step slides, ensuring stability and reliability. Manufactured by Schneider Electric in Spain, it comes with an 18-month warranty, reflecting the quality and durability expected from a leading name in electrical solutions.
Features
- Reliable and sturdy design.
- Smooth surface for easy mounting.
- Fast setup.
- Ideal for industrial applications.
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- - H: 250 mm W: 500 mm, - H: 250 mm W: 500 mm, - H: 250 mm W: 500 mm, - H: 250 mm W: 500 mm, - H: 250 mm W: 500 mm, - H: 250 mm W: 500 mm
- Mounting Location
- direct fixing on backstuds, step slide
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 3 kg CO2 eq., 3.4831077452746557
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 7 kg CO2 eq., 6.572524491924683
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Material
- galvanised steel
- Package Weight Lbs
- 1.222 kg
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Thickness
- 1.8 mm
- Accessory Separate Part Category2
- mounting accessory
- Stocking Flag
- Y
- Pep Code
- ENVPEP2202003EN
- Pep Verification Date
- 2025-09-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Fixing Modescrewed on backstuds M8, by fixing element
Carbon Footprint Of The Distribution Phase A42.4260643193755826, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.03976684603649439, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-09-16
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Energy Efficiency OptimizedFalse
Mounting Plate Descriptionplain
Permanent Permissible Load60 kg
Product Or Component Typemounting plate
RangePanelSeT
Sustainable PackagingNo
Total Lifecycle Carbon Footprint13 kg CO2 eq.
Medium DescPlain mounting plate H250xW500mm made of galvanised sheet steel
Product Kit IdentifierN
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2France, FR
Energy Model Use B6 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 12.521463402611417
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2202003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2202003EN
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-09-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- mounting plate
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
