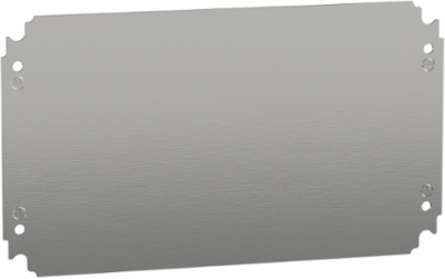

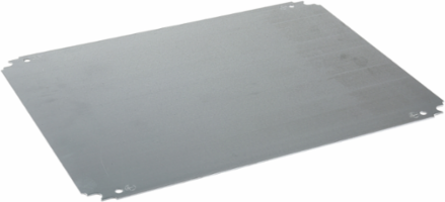

Schneider Electric NSYMM2540 Galvanised Steel Plain Mounting Plate 250mm x 400mm, 60kg Load Capacity
- MPN: NSYMM2540
- PPN: SCH-NSYMM2540
CAD
$22.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for versatility and durability, this plain mounting plate crafted from galvanised sheet steel is an essential component for various applications within the automation and control sectors. Measuring 250mm in height and 400mm in width, it provides a robust solution with a permanent permissible load of up to 60 kg, making it suitable for a range of mounting needs. Compatible with multiple ranges such as PanelSeT and Thalassa, it can be easily fixed using M8 backstuds or other fixing elements, ensuring a secure installation. Weighing just 1.179 kg, this mounting plate is not only practical but also designed with a focus on environmental considerations, as reflected in its carbon footprint. Ideal for both direct fixing and step slide mounting locations, it stands as a reliable choice for professionals seeking quality and performance in their projects.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 13.78 in
Height7.87 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- - H: 250 mm W: 400 mm, - H: 250 mm W: 400 mm, - H: 250 mm W: 400 mm, - H: 250 mm W: 400 mm, - H: 250 mm W: 400 mm, - H: 250 mm W: 400 mm
- Mounting Location
- step slide, direct fixing on backstuds
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 3 kg CO2 eq., 3.1353670374812777
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 6 kg CO2 eq., 5.916347742321728
- Local Data Status
- Publishable
- Return Indicator
- N
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Material
- galvanised steel
- Permanent Permissible Load
- 60 kg
- Product Or Component Type
- mounting plate
- Range
- PanelSeT
- Software Version
- v6.1
- Thickness
- 1.8 mm
- Pep Code
- ENVPEP2202003EN
- Pep Verification Date
- 2025-09-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 200 mm
- Width Nominal
- 350 mm
- Accessory / Separate Part Category
- mounting accessory
- Package Weight(Lbs)
- 1.100 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Fixing Modescrewed on backstuds M8, by fixing element
Carbon Footprint Of The Distribution Phase [A4]2.1838549519747468, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.03579666991828464, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-04-18
Stocking FlagY
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Mounting Plate Descriptionplain
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Total Lifecycle Carbon Footprint11 kg CO2 eq.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential, In %98
Height Useful200 mm
Width Real350 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 11.271366401696035
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2202003EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2202003EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
