Square D MCIE12004L Square D Meter Centre Inside Elbows 240V 1/3 Phase 800-1200A
- MPN: MCIE12004L
- UPC: 785901115113
- PPN: SCH-MCIE12004L
CAD
$3505.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

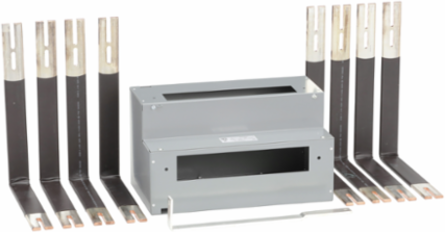

Square D Meter Centres provide a compact and versatile metering and distribution centre for today's residential, commercial, and industrial markets. The 3 phase 240VAC, 1200A inside elbow kit is a Square D Meter Centre meter stack accessory. The inside elbows permit customized installation of meter stack assemblies around wall corners. The installation is for connection between adjacent meter stacks only, not between a tap box and a meter stack. The 3 phase kit is rated for 1200A with a 50kA short circuit current rating.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D
Product Or Component Typeinside elbow
Complementary
- Height
- 457 mm
- Depth
- 162 mm
- Bus Rated Current
- 800-1200 A
Width254 mm
Network Number Of Phases1 phase || 3 phases
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- CSA
