Schneider Electric MC6IE1200 Square D Meter Centre Inside Elbow Section 600V 1200A 3 Phase
- MPN: MC6IE1200
- UPC: 785901853787
- PPN: SCH-MC6IE1200
CAD
$4369.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

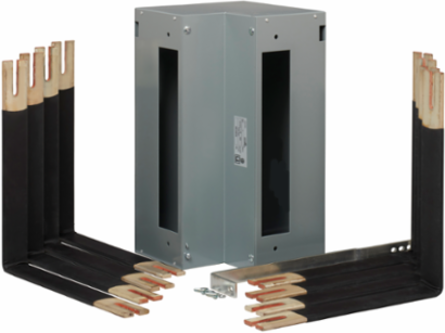

Square D Meter Centres provide a compact and versatile metering and distribution centre for today's residential, commercial, and industrial markets. The 3 phase 600VAC, 1200A inside elbow kit is a Square D Meter Centre meter stack accessory. The inside elbows permit customized installation of meter stack assemblies around wall corners. The installation is for connection between adjacent meter stacks only, not between a tap box and a meter stack. The 3 phase kit is rated for 1200A with a 50kA short circuit current rating. The elbows meet CSA standards.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Square D |
|---|
| Product Or Component Type | inside elbow |
|---|
Complementary
| Height | 457 mm |
|---|---|
| Depth | 162 mm |
| Bus Rated Current | 800-1200 A |
| Width | 254 mm |
|---|---|
| Network Number Of Phases | 3 phases |
Offer Sustainability
| China Rohs Regulation | X |
|---|---|
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Compliant with Exemptions |
Environment
| Product Certifications | CSA |
|---|
