Burndy YAV16M8 Copper Terminal Lug, Metric, 1-Hole 16 mm, 35 kV, Tin Plated, 0.60 Inch Pad Width
- MPN: YAV16M8
- UPC: 781810309896
- PPN: BUR-10016750
CAD
$13.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Non insulated Cu tubular terminals, Metric, 1 Hole/W/insp W, 16 mmClass, 5/16" stud, Tin - Electro Plated, 7 Index
Documentation & Downloads
Specifications

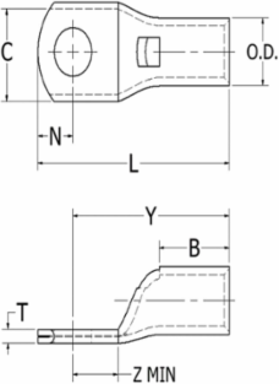

Dimensions
- Dimension - B Length inch
- 0.50 in
- Dimension - Hole Size mm
- 8.4 mm
- Dimension - L Length Overall mm
- 36.3mm
- Dimension - N inch
- 0.32 in
- Dimension - Pad Width inch
- 0.60 in
- Dimension - Z inch
- 0.36 in
Dimension - Hole Size inch0.33 in
Dimension - Inside Diameter inch0.22 in
Dimension - Length Overall inch0.06 in
Dimension - Outside Diameter inch0.31 in
Dimension - Strip Length inch0.51 in
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedNo
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor Type
- CU C Str-Size
Conductor - Copper Str Size6 AWG
General
- Connector Type
- Terminal
- Feature - Barrel Style
- Chamfered
- Material
- Copper
- Physical Attribute - Tongue Type
- Ring
- Plating Type
- Tin - Electro Plated
- Type
- Metric Terminals
- UPC 12 Digit
- 7818103098966
Die Index7
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
PlatedYES
Trade NameHYLUG™
UPC781810309896
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 50
