Burndy YAV50M10 Metric Copper Terminal, 50mm Class 2, 1 Hole, Tin Plated, 35 kV Rating
- MPN: YAV50M10
- UPC: 781810080610
- PPN: BUR-610323
CAD
$23.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Non insulated Cu tubular terminals, Metric, 1 Hole/W/insp W, 50mm Class 2, Tin - Electro Plated, 12 Index
Documentation & Downloads
Specifications

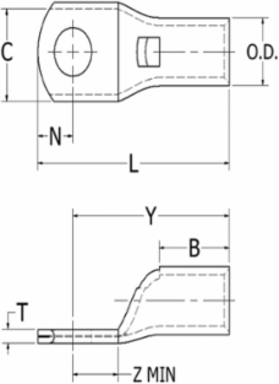

Dimensions
- Dimension - B Length fraction
- 13/16 in
- Dimension - Bolt Hole Size inch
- 0.20 in
- Dimension - Hole Size inch
- 0.41 in
- Dimension - Inside Diameter inch
- 0.36 in
- Dimension - Length Overall inch
- 0.10 in
- Dimension - Outside Diameter inch
- 0.46 in
- Dimension - Strip Length inch
- 0.67 in
- Dimension - Z inch
- 0.42 in
Dimension - B Length inch0.63 in
Dimension - D inch0.84 in
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm3 mm
Dimension - N inch0.39 in
Dimension - Pad Width inch0.68 in
Dimension - Stud Size inch#10
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedNo
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Size Range
- 2 AWG
Conductor - Copper Str Size2 AWG
Conductor TypeCU C Str-Size
General
- Connector Type
- Terminal
- Material
- Copper
- Plated
- Y
- Temperature Rating
- 194
- Type
- Metric Terminals
- UPC 12 Digit
- 7818100806100
Die Index12
Physical Attribute - Number of Holes1
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810080610
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 20
