Burndy YAV25M10 Copper Metric Terminal, 1 Hole, 3/8 Inch Stud, Tin Plated, 35 kV Rating
- MPN: YAV25M10
- UPC: 781810373330
- PPN: BUR-610320
CAD
$16.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Non insulated Cu tubular terminals, Metric, 1 Hole/W/insp W, 25 mmClass 2, 3/8" stud, Tin - Electro Plated, 9 Index,Tongue Thickness :2.0
Documentation & Downloads
Specifications

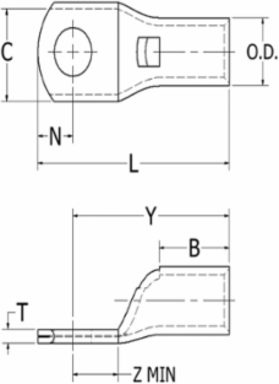

Dimensions
- Dimension - B Length inch
- 0.50 in
- Dimension - Hole Size inch
- 0.41 in
- Dimension - L Length Overall mm
- 41.4 mm
- Dimension - N inch
- 0.41 in
- Dimension - Pad Width inch
- 0.58 in
- Dimension - Stud Size inch
- M10
- Physical Attribute - Tongue Angle
- Straight
Dimension - Bolt Hole Size inch0.41 in
Dimension - Hole Size mm10.4 mm
Dimension - Length Overall inch1.63 in
Dimension - Outside Diameter inch0.38 in
Dimension - Strip Length inch0.50 in
Dimension - Z inch0.42 in
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedNo
Conductor Related
- Conductor - Copper Str Size
- 4 AWG
Conductor TypeCU C Str-Size
General
- Connector Type
- Terminal
- Feature - Barrel Style
- Chamfered
- Material
- Copper
- Physical Attribute - Tongue Type
- Ring
- Plating Type
- Tin - Electro Plated
- Type
- Metric Terminals
- UPC 12 Digit
- 7818103733300
Die Index9
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
PlatedYes
Trade NameHYLUG™
UPC781810373330
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 50
