Burndy YAV50M12 Metric Tubular Terminal 50 mm, 1 Hole, Tin-Plated Copper, 35 kV Rating
- MPN: YAV50M12
- UPC: 781810237526
- PPN: BUR-25020102
CAD
$23.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Non insulated Cu tubular terminals, Metric, 1 Hole/W/insp W, 50 mm, Class2, M 12 stud, Tin - Electro Plated, 12 Index
Documentation & Downloads
Specifications

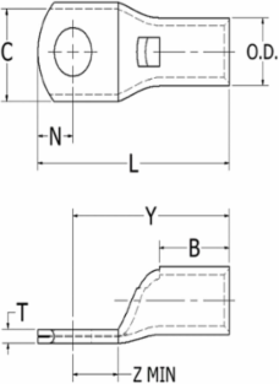

Dimensions
| Dimension - B Length fraction | 3/4 in |
|---|---|
| Dimension - D inch | 1.04 in |
| Dimension - Hole Size mm | 13 mm |
| Dimension - L Length Overall mm | 3 mm |
| Dimension - N inch | 0.47 in |
| Dimension - Pad Width inch | 0.73 in |
| Dimension - Z inch | 0.55 in |
| Dimension - B Length inch | 0.63 in |
|---|---|
| Dimension - Hole Size inch | 0.52 in |
| Dimension - Inside Diameter inch | 0.36 in |
| Dimension - Length Overall inch | 0.10 in |
| Dimension - Outside Diameter inch | 0.46 in |
| Dimension - Strip Length inch | 0.67 in |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | No |
Conductor Related
| Conductor - Copper DLO Size Range | N/A |
|---|---|
| Conductor - Copper Str Size Range | 2 |
| Conductor - Copper Str Size | 2 |
|---|---|
| Conductor Type | CU C Str-Size |
General
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Plated | Y |
| Temperature Rating | 194 |
| Type | Metric Terminals |
| UPC 12 Digit | 7818102375266 |
| Die Index | 12 |
|---|---|
| Physical Attribute - Number of Holes | 1 |
| Plating Type | Tin - Electro Plated |
| Trade Name | HYLUG™ |
| UPC | 781810237526 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Carton Quantity | 100 EA |
|---|
| Minimum Pack Quantity | 20 |
|---|
