Weidmuller 1816290000 MF-W 9/6 MC NE WS
- MPN: 1816290000
- PPN: WDM-1816290000
CAD
$0.16
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

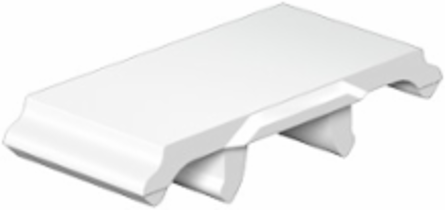

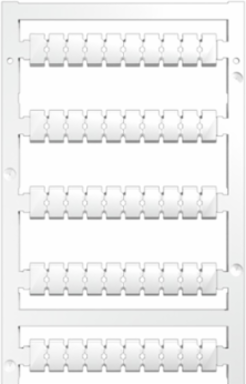

MultiFit, Terminal marker, 9 x 6 mm, Pitch in mm (P): 6.00 WAGO, Legrand, white
Documentation & Downloads
Specifications
General Data
| Application/manufacturer | WAGO, Legrand |
|---|---|
| Halogen | No |
| Material colour according to resistance code | 9 |
| Type of printing | neutral |
| Width | 6 mm |
| Colour | white |
|---|---|
| Material | Polyamide 66 |
| Operating temperature range | -40...100 °C |
| UL 94 flammability rating | V-2 |
| compatible printer | 1324380000 2438520000 2438510000 |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 6 mm |
|---|---|
| Height | 9 mm |
| Net weight | 0.172 g |
| Width (inches) | 0.236 inch |
|---|---|
| Height (inches) | 0.354 inch |
Connector Markers
| Pitch in mm (P) | 6 mm |
|---|
Classifications
| ETIM 6.0 | EC000761 |
|---|---|
| eClass 9.0 | 27-14-11-37 |
| eClass 10.0 | 27-14-11-37 |
| ETIM 7.0 | EC000761 |
|---|---|
| eClass 9.1 | 27-14-11-37 |
| UNSPSC | 30-21-18-07 |
