Description

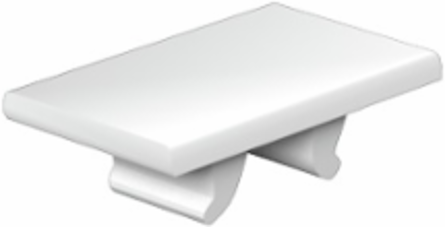

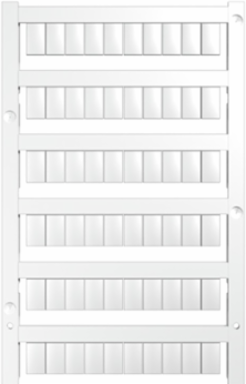

WS, Terminal marker, 10 x 6 mm, Pitch in mm (P): 6.00 Weidmueller, Allen-Bradley, white
Specifications
General Data
- Application/manufacturer
- Weidmueller, Allen-Bradley
- Material
- Polyamide 66
- Operating temperature range
- -40...100 °C
- Width
- 6 mm
Colourwhite
Material colour according to resistance code9
UL 94 flammability ratingV-2
compatible printer1324380000 2438520000 2438510000
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 6 mm
- Height
- 10 mm
- Net weight
- 0.198 g
Width (inches)0.236 inch
Height (inches)0.394 inch
Connector Markers
- Pitch in mm (P)
- 6 mm
Classifications
- ETIM 6.0
- EC000761
- eClass 9.0
- 27-14-11-37
- eClass 10.0
- 27-14-11-37
ETIM 7.0EC000761
eClass 9.127-14-11-37
UNSPSC30-21-18-07
