Weidmuller 2007160000 WS 8/6 MM WS
- MPN: 2007160000
- PPN: WDM-2007160000
CAD
$0.10
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

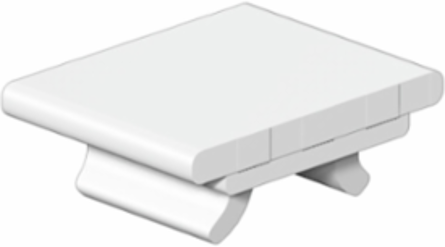

WS, Terminal marker, 8 x 6 mm, Weidmueller, white
Documentation & Downloads
Specifications
General Data
- Application/manufacturer
- Weidmueller
- Halogen
- No
- Number per roll
- 600
- UL 94 flammability rating
- V-2
- Width
- 6 mm
Colourwhite
MaterialPC-ABS, TPU
Operating temperature range-50...90 °C
Versionwith clip-in foot, halogen-free
compatible printer2599430000 2599440000
Classifications
- ETIM 6.0
- EC000761
- eClass 9.0
- 27-14-11-37
- eClass 10.0
- 27-14-11-37
ETIM 7.0EC000761
eClass 9.127-14-11-37
Dimensions And Weights
- Width
- 6 mm
- Height
- 8 mm
- Net weight
- 0.12 g
Width (inches)0.236 inch
Height (inches)0.315 inch
Approvals
- ROHS
- Conform
