nVent Hoffman MHC30020080SS GL66 Stainless Steel Terminal Box 300x200x80mm, IP66, NEMA 12

MPN: MHC30020080SS
PPN: HOF-MHC30020080SS
UNSPSC: 39121324

$795.85

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

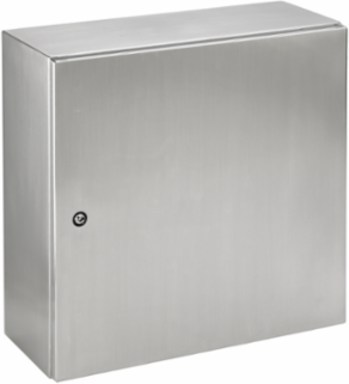

This GL66 stainless steel terminal box uses quarter turn latching with 3mm double-bit insert. This GL66 Terminal Box 1/4 Turn Latch Type 4X, MHC30020080SS item measures 300x200x80mm with a material of SS 304, Brushed.

Features

Removable hinges and double-bit latch insert
Dimensions in millimeters
Manufactured from Type 304 14 and 16 gauge stainless steel; 16 gauge doors and 14 gauge bodies
Type 316 stainless steel hinge pins
Seams continuously welded and ground smooth
External formed 90 degree body flange
Large perimeter body opening
Mounting holes in back of body for direct mounting or for optional external mounting brackets
Seamless foam-in-place gasket
Grounding stud on the body
Bonding provision on the door
Quarter-turn latches furnished with 3mm double-bit insert
Door opens 180 degrees
Furnished hardware kit includes 12 gauge back panel, panel mounting screws, grounding hardware and sealing washers for wallmounting holes
Installation instructions

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	200
Protection Rating	NEMA Type 12
Finish	Brushed #3
Door Thickness	1.59
NEMA Rating	12 Indoor, dust-resistant
IP Rating	IP66
Size	300x200x80mm
