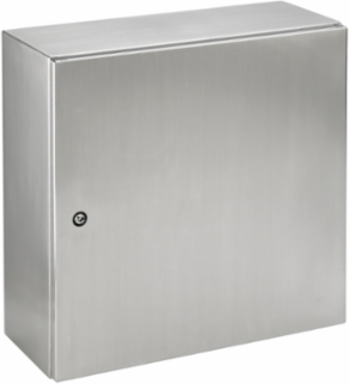

Nvent Hoffman MHC300300120SS GL66 Terminal Box 300x300x120mm, Brushed Stainless Steel, IP66
Nvent Hoffman MHC300300120SS GL66 Terminal Box 300x300x120mm, Brushed Stainless Steel, IP66
- MPN: MHC300300120SS
- PPN: HOF-MHC300300120SS
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$899.23/ EA
Description
This GL66 stainless steel terminal box uses quarter turn latching with 3mm double-bit insert. This GL66 Terminal Box 1/4 Turn Latch Type 4X, MHC300300120SS item measures 300x300x120mm with a material of SS 304, Brushed.
Features
- Removable hinges and double-bit latch insert
- Dimensions in millimeters
- Manufactured from Type 304 14 and 16 gauge stainless steel; 16 gauge doors and 14 gauge bodies
- Type 316 stainless steel hinge pins
- Seams continuously welded and ground smooth
- External formed 90 degree body flange
- Large perimeter body opening
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Seamless foam-in-place gasket
- Grounding stud on the body
- Bonding provision on the door
- Quarter-turn latches furnished with 3mm double-bit insert
- Door opens 180 degrees
- Furnished hardware kit includes 12 gauge back panel, panel mounting screws, grounding hardware and sealing washers for wallmounting holes
- Installation instructions
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 300
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #3
- Door Thickness
- 1.59
- NEMA Rating
- 12 Indoor, dust-resistant
- IP Rating
- IP66
- Size
- 300x300x120mm
Height (H)300
Depth (D)120
Product FamilyGL66
Body Thickness1.98
Mounting (G x H)281 x 235
Weight15
MaterialStainless Steel
