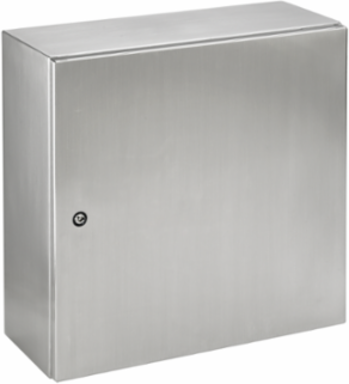

GL66 Terminal Box, 400x300x150mm, Stainless Steel, NEMA Type 12
nVent Hoffman

nVent Hoffman MHC400300150SS GL66 Terminal Box, 400x300x150mm, Stainless Steel, NEMA Type 12

  • MPN: MHC400300150SS
  • PPN: HOF-MHC400300150SS
  • UNSPSC: 39121324

CAD

$1136.15

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This GL66 stainless steel terminal box uses quarter turn latching with 3mm double-bit insert. This GL66 Terminal Box 1/4 Turn Latch Type 4X, MHC400300150SS item measures 400x300x150mm with a material of SS 304, Brushed.

Features

  • Removable hinges and double-bit latch insert
  • Dimensions in millimeters
  • Manufactured from Type 304 14 and 16 gauge stainless steel; 16 gauge doors and 14 gauge bodies
  • Type 316 stainless steel hinge pins
  • Seams continuously welded and ground smooth
  • External formed 90 degree body flange
  • Large perimeter body opening
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Seamless foam-in-place gasket
  • Grounding stud on the body
  • Bonding provision on the door
  • Quarter-turn latches furnished with 3mm double-bit insert
  • Door opens 180 degrees
  • Furnished hardware kit includes 12 gauge back panel, panel mounting screws, grounding hardware and sealing washers for wallmounting holes
  • Installation instructions

Documentation & Downloads

Specifications

Key Specifications

BABA
Contact Manufacturer
Width (W)
300
Protection Rating
NEMA Type 12
Finish
Brushed #3
Door Thickness
1.59
NEMA Rating
12 Indoor, dust-resistant
IP Rating
IP66
Size
400x300x150mm
Height (H)400
Depth (D)150
Product FamilyGL66
Body Thickness1.98
Mounting (G x H)381 x 235
Weight18.19
MaterialStainless Steel
