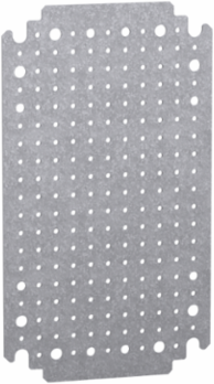

Schneider Electric NSYMF32 Microperforated Mounting Plate 300x200 mm, Galvanised Steel, 60 kg Load
- MPN: NSYMF32
- PPN: SCH-NSYMF32
CAD
$23.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is300 x W is200 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 60 Kg permissible load. Galvanised steel.
Documentation & Downloads
Specifications
Key Specifications
- Enclosure Nominal Dimensions
- H: 300 mm W: 200 mm
- Material
- galvanised steel
- Quantity Per Set
- set of 1
- Device Application
- multi-purpose
- Range
- Spacial
Range CompatibilitySpacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
Accessory / Separate Part Categorymounting accessory
Product Or Component Typemounting plate
Mounting Plate Descriptionmicroperforated
Mounting Locationdirect fixing on backstuds || step slide
Complementary
- Width
- 150 mm
- Thickness
- 1.8 mm
- Depth
- 125 mm
- Permanent Permissible Load
- 60 kg
Height265 mm
Net Weight0.56 kg
Fixing Modescrewed on backstuds M8 || by fixing element
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Contractual warranty
- Warranty
- 18 months
