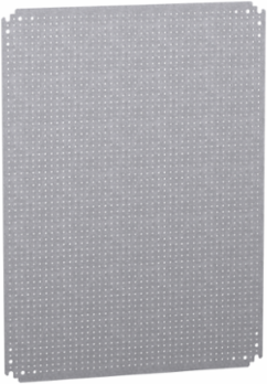

Schneider Electric NSYMF86 Microperforated Mounting Plate 800x600mm, Galvanized Steel, 135kg Load
- MPN: NSYMF86
- PPN: SCH-NSYMF86
CAD
$105.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is800 x W is600 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 135 Kg permissible load. Galvanised steel.
Documentation & Downloads
Specifications
Key Specifications
- Enclosure Nominal Dimensions
- H: 800 mm W: 600 mm
- Material
- galvanised steel
- Quantity Per Set
- set of 1
- Device Application
- multi-purpose
- Range
- Spacial
Range CompatibilitySpacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
Accessory / Separate Part Categorymounting accessory
Product Or Component Typemounting plate
Mounting Plate Descriptionmicroperforated
Mounting Locationstep slide || direct fixing on backstuds
Complementary

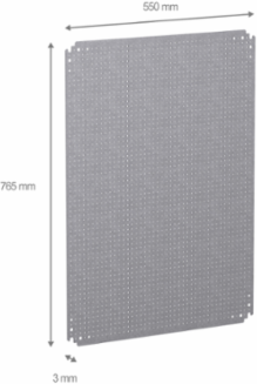

- Width
- 550 mm
- Variant Particularity
- with enclosures H800 x W1200 || installation in enclosures with inverted dimensions
- Net Weight
- 7.8 kg
- Fixing Mode
- screwed on backstuds M8 || by fixing element
Height765 mm
Thickness2.5 mm
Depth125 mm
Permanent Permissible Load135 kg
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Contractual warranty
- Warranty
- 18 months
