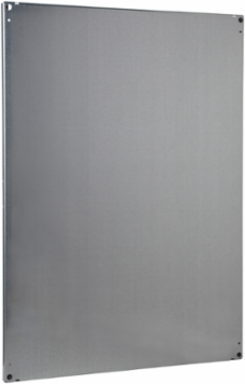

Schneider Electric NSYMP1612 Spacial SF/SM Mounting Plate 1600x1200 mm, Galvanized Steel, 600 kg Load
- MPN: NSYMP1612
- PPN: SCH-NSYMP1612
CAD
$479.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Spacial SF/SM standard mounting plate. 1599 x 1200 mm. Equipped with a perimeter reinforcement rib. Max. Load 600 kg if positioned in the rear, 500 kg if positioned in the middle of Enclosure. Galvanized sheet steel. Fixing mode by brackets.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 47.24 in
Height62.99 in
Depth27 mm
Complementary Attributes
- Maximum Load
- 300 kg/m²
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 mounting plate, 2 sliding shoes
- Permanent Permissible Load
- 500 kg intermediate position, 600 kg back of the enclosure
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 125 kg CO2 eq., 125.4146814992511
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 237 kg CO2 eq., 236.65390969286912
- Local Data Status
- Publishable
- Return Indicator
- N
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Fixing Mode
- by fixing brackets
- Mounting Plate Description
- plain
- Product Or Component Type
- mounting plate
- Range
- PanelSeT
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 451 kg CO2 eq.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential, In %
- 98
- Height Useful
- nominal: 1600 mm
- Width Real
- nominal: 1200 mm
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 1600 mm W: 1200 mm, - H: 1600 mm W: 1200 mm, - H: 1600 mm W: 1200 mm, - H: 1600 mm W: 1200 mm, - H: 1600 mm W: 1200 mm, - H: 1600 mm W: 1200 mm
Carbon Footprint Of The Distribution Phase [A4]87.35419807898988, 87 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]1.4318667967313856, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-04-15
Stocking FlagY
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Materialgalvanised steel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Pep CodeENVPEP2202003EN
Pep Verification Date2025-09-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominalfixing centers: 1450 mm
Width Nominalfixing centers: 1050 mm
Accessory / Separate Part Categorymounting accessory
Package Weight(Lbs)44.000 kg
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2202003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint450.8546560678415
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-09-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
