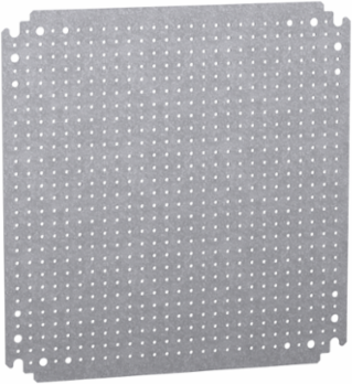

Schneider Electric NSYMF44 Microperforated mounting plate H400xW400 w/holes diam 3,6mm on 12,5mm pitch

Microperforated mounting plate H400xW400 w/holes diam 3,6mm on 12,5mm pitch

Schneider Electric NSYMF44 Microperforated mounting plate H400xW400 w/holes diam 3,6mm on 12,5mm pitch

MPN: NSYMF44
PPN: SCH-NSYMF44

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$41.35/ EA

Loading add to cart quantity...

Description

Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is400 x W is400 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 60 Kg permissible load. Galvanised steel.

Specifications

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2202003EN

Toxic Heavy Metal Free: Yes

Reach Regulation: Free of Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Reach Free Of SvhcYes

Complementary

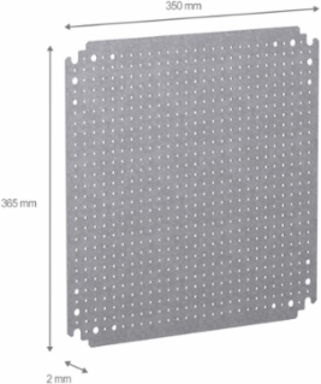

Width: 350 mm

Thickness: 1.8 mm

Depth: 125 mm

Permanent Permissible Load: 60 kg

Height365 mm

Net Weight1.9 kg

Fixing Modescrewed on backstuds M8 || by fixing element

Specifications

Enclosure Nominal Dimensions: H: 400 mm W: 400 mm

Material: galvanised steel

Quantity Per Set: set of 1

Device Application: multi-purpose

Range: Spacial

Range CompatibilitySpacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM

Accessory / Separate Part Categorymounting accessory

Product Or Component Typemounting plate

Mounting Plate Descriptionmicroperforated

Mounting Locationdirect fixing on backstuds || step slide

Contractual warranty

Warranty: 18 months
