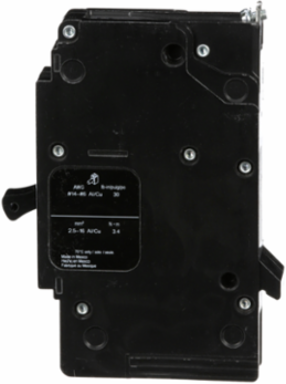

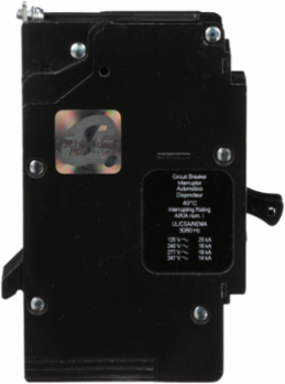

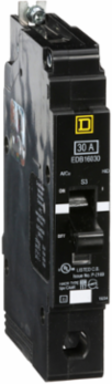

Square D EDB16030 Mini Circuit Breaker 30A 1 Pole 600Y/347VAC Bolt-On
- MPN: EDB16030
- UPC: 785901238539
- PPN: SCH-EDB16030
CAD
$263.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 30A, 1 pole, and has an operating voltage of 600Y/347 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Depth
- 4.05 in
ComplianceTAA Compliant
Complementary Attributes
- Line Rated Current
- 30 A
Important Information Attributes
- Persona Type Ids
- LC, OM
- Awg Gauge
- AWG 12...AWG 6 aluminium, AWG 14...AWG 6 copper
- Certificate Agency
- cULus, IEC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.9 kg CO2 eq., 0.9216298503396348
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 4 kg CO2 eq., 4.225556779970689
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2534
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Device Short Name
- EDB
- Energy Efficiency Optimized
- False
- Local Signalling
- trip indicator
- Mounting Mode
- bolt-on
- Number Of Spaces
- 1
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- circuit-breaker
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 7 kg CO2 eq.
- Trip Unit Technology
- thermal-magnetic
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential, In %
- 30
- Width Nominal
- 0.98 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesContractor, Original Equipment Manufacturer
Protection Typeoverload, short-circuit
Carbon Footprint Of The Distribution Phase [A4]0.1895056303325352, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.22345475553981256, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]1 kg CO2 eq., 1.40182223402897
Local Publishable Date2025-11-19
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationCommercial
Circuit Breaker ApplicationHACR rated
Electrical Connectionlugs aluminium
Holding Current270 A
Module TypeE-Frame
Number Of Poles1
Number Of Spaces Required1
Product DestinationNF panelboard
Range Of Product125 A Frame EDB-EGB-EJB
Software Versionv6.2.5-6
Tightening Torque3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6)
Trip Unit Rating875-875 A
Pep CodeENVPEP2510013EN
Pep Verification Date2025-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal5.66 in
[Ue] Rated Operational Voltage600Y/347 V AC
Package Weight(Lbs)589.988 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 6.9619692502116415
- Environmental Disclosure
- ENVPEP2510013EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2510013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- circuit-breaker
Range Of Product125 A Frame EDB-EGB-EJB
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
