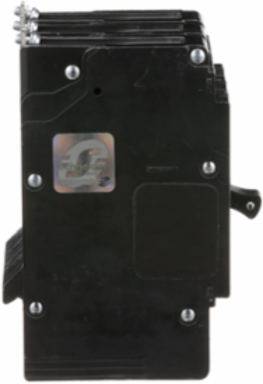

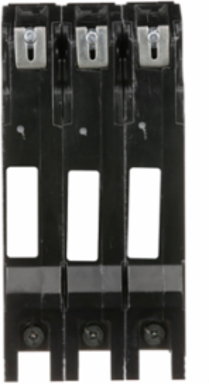

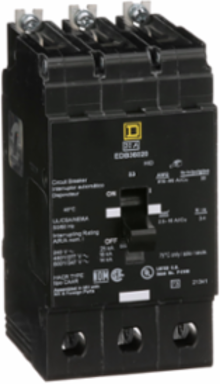

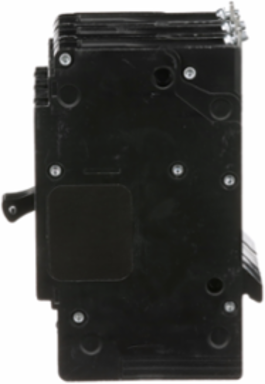

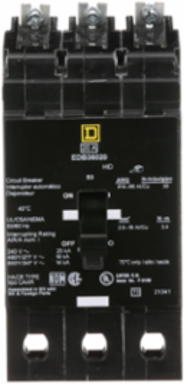

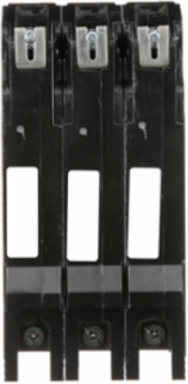

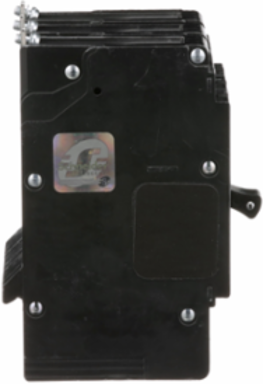

Schneider Electric EDB36030 Mini Circuit Breaker 30A 3 Pole 600Y/347VAC Bolt-On

MPN: EDB36030
UPC: 785901233961
PPN: SCH-EDB36030

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$792.29

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 30A, 3 pole, and has an operating voltage of 600Y/347 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.

Features

Specifically designed for high-performance Square D NF Series panels, the EDB36030 features a secure bolt-on connection that ensures a permanent, vibration-resistant attachment to the bus bar. This eliminates the risk of loose connections common in plug-on alternatives, providing a reliable power distribution solution for mission-critical commercial and industrial electrical systems.
This 30-amp, 3-pole circuit breaker provides robust overcurrent and short-circuit protection for three-phase electrical circuits. Utilizing a sophisticated thermal-magnetic trip element, it allows for momentary surges during motor startup while providing an instantaneous trip during dangerous faults, preventing costly equipment damage and minimizing facility downtime.
Boasting an impressive interrupting capacity of 25kA at 480Y/277V AC and 18kA at 600Y/347V AC, this E-Frame breaker is engineered to safely quench high-energy arcs. This superior AIC (Amperage Interrupting Capacity) rating ensures your electrical infrastructure remains compliant with strict NEC coordination requirements in high-fault current applications.
The EDB36030 utilizes the space-efficient E-Frame architecture, allowing for high-density mounting within your panelboard. This compact footprint is ideal for electrical contractors and engineers looking to maximize circuit counts in crowded electrical closets without sacrificing the thermal performance or durability required for continuous-duty industrial loads.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Depth	4.05 in

Compliance	TAA Compliant

Complementary Attributes

Line Rated Current	30 A

Important Information Attributes

Persona Type Ids	EU, LC, OM
Protection Type	short-circuit, overload
Carbon Footprint Of The End-of-life Phase [C1 To C4]	3 kg CO2 eq., 2.6243553234482504
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	12 kg CO2 eq., 12.032338607481437
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2534
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Circuit Breaker Application	HACR rated
Electrical Connection	lugs aluminium
Holding Current	270 A
Module Type	E-Frame
Number Of Poles	3
Number Of Spaces Required	3
Product Destination	NF panelboard
Range Of Product	125 A Frame EDB-EGB-EJB
Software Version	v6.2.5-6
Tightening Torque	3.4-3.4 N.m 2.5-16 mm² (14 AWG...6 AWG)
Trip Unit Rating	875-875 A
Pep Code	ENVPEP2510013EN
Pep Verification Date	2025-11-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	5.66 in
Certificate Agency	cULus
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536200040

Persona Type Names	End User, Contractor, Original Equipment Manufacturer
Carbon Footprint Of The Distribution Phase [A4]	0.5396202277989707, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.6362908894873881, 0.6 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	1 kg CO2 eq., 1.40182223402897
Local Publishable Date	2025-12-16
Stocking Flag	N
Device Type	LV equipment - Low voltage circuit breaker
Traceability	Yes
Average Life Duration	15 year(s)
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Commercial
Awg Gauge	12 AWG...6 AWG aluminium14 AWG...6 AWG copper
Device Short Name	EDB
Energy Efficiency Optimized	False
Local Signalling	trip indicator
Mounting Mode	bolt-on
Number Of Spaces	3
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	circuit-breaker
Returnability	Yes
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	17 kg CO2 eq.
Trip Unit Technology	thermal-magnetic
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	30
Width Nominal	2.94 in
[Ue] Rated Operational Voltage	600Y/347 V AC
Package Weight(Lbs)	1.68 kg
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	17.234427282245015
Environmental Disclosure	ENVPEP2510013EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-11-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Mercury Free	Yes
Ambient Air Temperature For Operation	40 °C
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2510013EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
