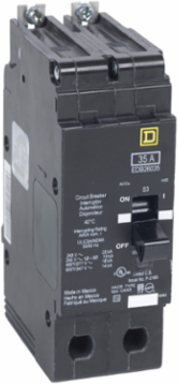

Square D EDB26080 Mini Circuit Breaker 80A 2 Pole 600Y/347 VAC Bolt-On
- MPN: EDB26080
- PPN: SCH-EDB26080
CAD
$868.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 80A, 2 pole, and has an operating voltage of 600Y/347 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 1000A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 2300A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. HACR rated.
Documentation & Downloads
Specifications
Key Specifications
- Module Type
- E-Frame
- Trip Unit Rating
- 2300-2300 A
- Device Short Name
- EDB
Range Of Product125 A Frame EDB-EGB-EJB
Product Or Component Typeminiature circuit-breaker
Complementary
- Circuit Breaker Application
- HACR rated
- Mounting Mode
- bolt-on
- Tightening Torque
- 3.9-3.9 N.m 2.5-6 mm² AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² AWG 8...AWG 2/0)
- Product Destination
- NF panelboard
- Number Of Spaces Required
- 2
- Protection Type
- overload || short-circuit
- Awg Gauge
- AWG 12...AWG 2/0 aluminum || AWG 14...AWG 2/0 copper
- Depth
- 4.05 in
- Breaking Capacity
- 14 kA 600Y/347 V AC
- Trip Unit Technology
- thermal-magnetic
- [Ue] Rated Operational Voltage
- 600Y/347 V AC
Height5.66 in
Holding Current1000 A
Breaking Capacity CodeD
Electrical Connectionlugs aluminum
[In] Rated Current80 A
Local Signallingtrip indicator
Width1.96 in
Number Of Spaces2
Net Weight3 lb(US)
Number Of Poles2
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- cULus
Ambient Air Temperature For Operation40 °C
