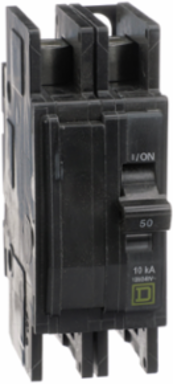

Square D QOUR250 Mini Circuit Breaker 50A 2 Pole 120/240 VAC 10kA
- MPN: QOUR250
- UPC: 785901079354
- PPN: SCH-QOUR250
CAD
$357.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
QO™ and QOU Miniature Circuit Breakers, QOUR250, is ideal for OEM applications. Equipped with Rotated fixing lug QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit.
Documentation & Downloads
Specifications
Additional
- Amperage
- 50 A
- Circuit Breaker Type
- Standard
- Poles
- 2
- Width
- 1.5 in
- Wire Gauge
- AWG 14...AWG 2 aluminum/copper
- Mounting Mode
- Unit mount
- Material
- Not specified
- Certifications
- CSA, UL Listed, IEC
- Toxic Heavy Metal Free
- Yes
- Warranty
- 18 months
Voltage120/240 V AC
Interrupt Rating10 kA
Height4.05 in
Depth2.95 in
Tightening Torque45 lbf.in (AWG 14...AWG 2)
Electrical ConnectionSlotted box lugs, line side and load side
Halogen ContentHalogen free product
RoHS ComplianceCompliant with Exemptions
Mercury FreeYes
Country of OriginMexico
